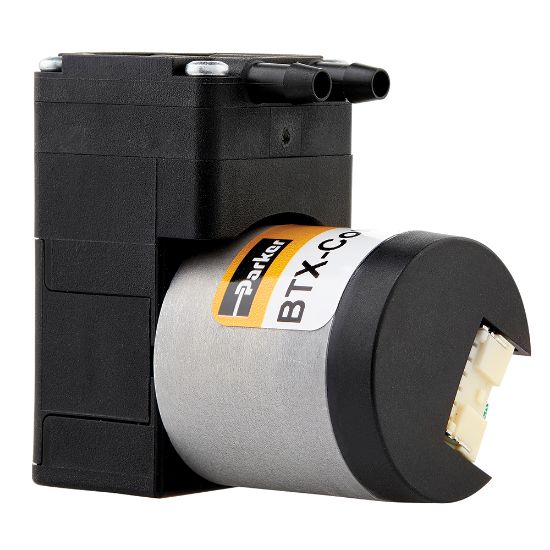

Parker B1C-090P12AN-00 - BTX Single and Dual Head Miniature Diaphragm Pump (Gas)

BTX Single and Dual Head Miniature Diaphragm Pumps (gas) Up to 11 LPM Free Flow

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B1C-090P12AN-00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
For Fluid Type	Air	Length	2.22 inch
Operating Temperature	5 to 50 °C	Weight	125 g
Flow Rate	5.5 L/min	Body Material	PBT
Product Type	Diaphragm Pump	Width	1.18 inch
Height	54.7 mm	Motor Type	Brushless DC
Noise Level	45 dBA	Operational Life	15000 Hours
Diaphragm Material	AEPDM	Industry Application	Water Quality Monitoring
Maximum Continuous Pressure	26 psi	Maximum Outlet Pressure Rating	1.79 bar
Maximum Continuous Vacuum Pressure	n/a	Pump Size	Single Head
Pump Type	Pressure	Motor Option	Brushless DC
Input Voltage	12	Free Flow Rate	Up to 5.5 L/min
Operational Life	15,000 hr	Motor Control Option	On/Off Power Only
