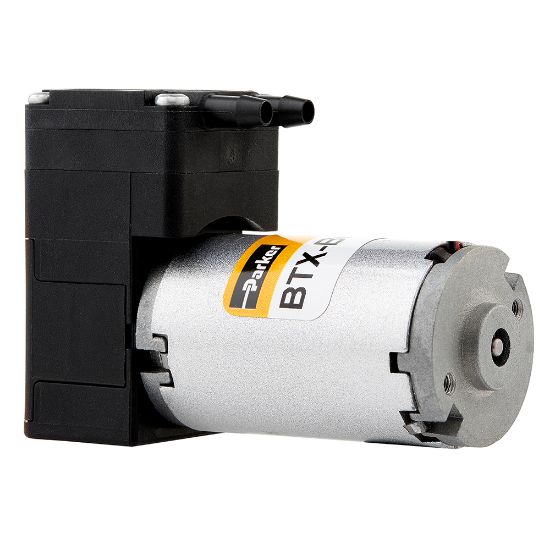

Parker B1B-090V06AN-00 - BTX Single and Dual Head Miniature Diaphragm Pump (Gas)

BTX Single and Dual Head Miniature Diaphragm Pumps (gas) Up to 11 LPM Free Flow

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B1B-090V06AN-00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
For Fluid Type	Air	Height	2.15 inch
Operating Temperature	5 to 50 °C	Width	30 mm
Length	3.10 inch	Industry Application	Compression Therapy
Weight	193 g	Flow Rate	5.7 L/min
Body Material	PBT	Product Type	Diaphragm Pump
Motor Type	Iron Core Brush	Noise Level	45 dBA
Operational Life	3000 Hours	Diaphragm Material	AEPDM
Maximum Continuous Pressure	n/a bar	Maximum Outlet Pressure Rating	n/a bar
Maximum Continuous Vacuum Pressure	-4.4 psi	Pump Size	Single Head
Pump Type	Vacuum	Motor Option	Iron Core Brush DC
Input Voltage	6	Free Flow Rate	Up to 5.7 L/min
Operational Life	3,000 hr	Motor Control Option	On/Off Power Only
