*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

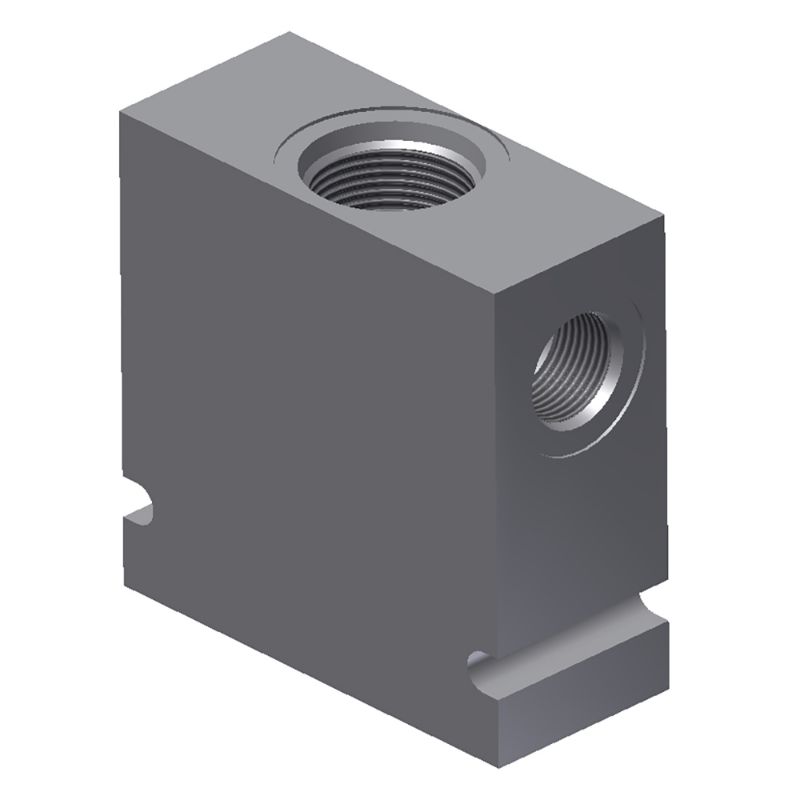

Parker B16-3-A12T - Standard Bodies

Name: Parker B16-3-A12T - Standard Bodies
SKU: B16-3-A12T
Price: 174.00 USD
Availability: InStock

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.

AFP Availability:

2 Limited Stock

Greensboro, NC

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. B16-3-A12T

$174.00/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body
Weight	2	Connection Size	-12
Maximum Operating Pressure	3000	Seal Material	Determined by Threaded Cartridge Valve installed in Line Body
Number of Positions	3-Way	Connection Type	SAE
Division	Hydraulic Valve Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Cavity Size	C16-3
Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body	Body Material	Aluminum
Division	Hydraulic Systems Division	Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body
Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Connection Type	SAE
Body Material	Aluminum	Number of Positions	3 way
Cavity Size	C16-3	Connection Size	-12

Product resources

Literature and Reference Materials
