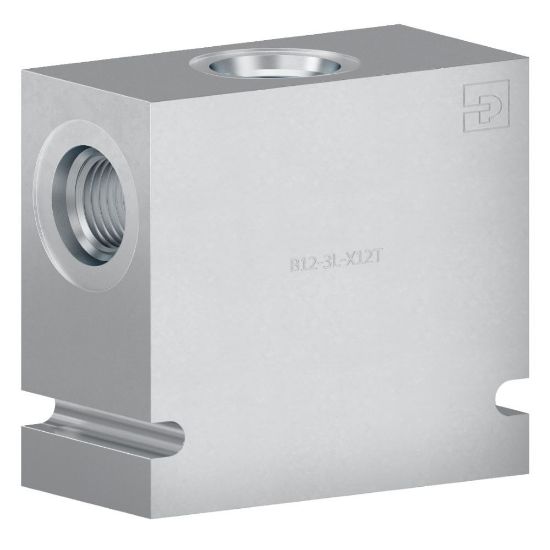

Parker B12-3L-A12T - Standard Bodies

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. B12-3L-A12T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Type	SAE	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
Body Material	Aluminum	Maximum Operating Pressure	210 bar
Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body	Seal Material	Determined by Threaded Cartridge Valve installed in Line Body
Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body	Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body
Number of Positions	3-Way	Weight	1.4 lb
Cavity Size	C12-3L	Connection Size	-12 mm
Connection Type	SAE	Body Material	Aluminum
Number of Positions	3 way	Cavity Size	C12-3L
Connection Size	-12
