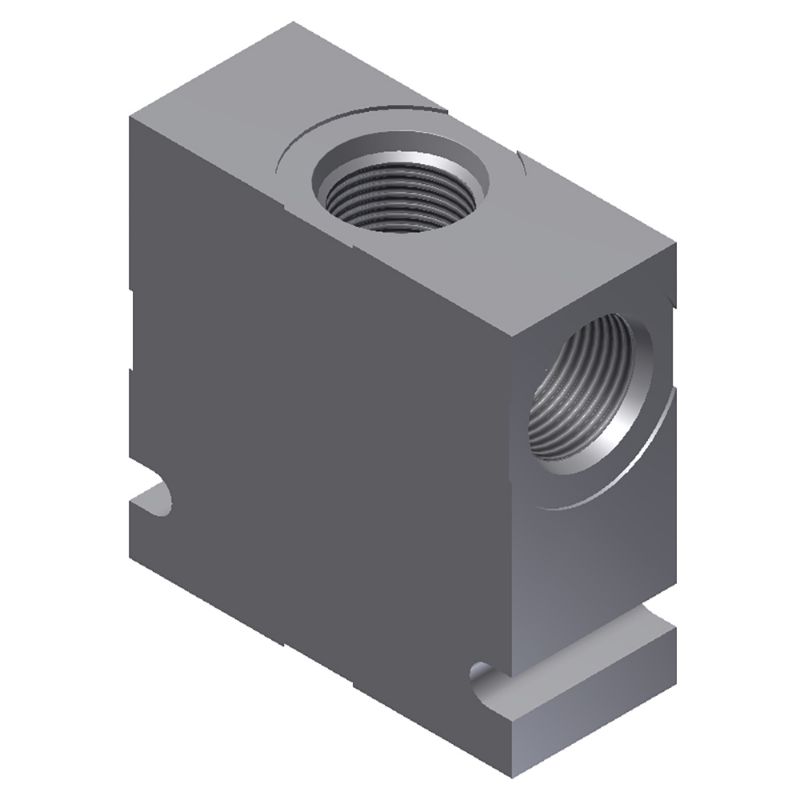

Parker B12-3-12T - Standard Bodies

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.

AFP Availability:	Quote Required
Partner Available:	13 In Stock

Brand Parker

Part No. B12-3-12T

$503.94/each

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Mineral-based Hydraulic Fluids
Number of Positions	3-Way	Division	Hydraulic Cartridge Systems Division
Connection Type	SAE	Cavity Size	C12-3
Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Division	Hydraulic Systems Division
Body Material	Steel	Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body
Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body	Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Seal Material	Determined by Threaded Cartridge Valve installed in Line Body	Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body
Connection Size	-12 mm	Weight	1.72 kg
Maximum Operating Pressure	350 bar	Body Material	Steel
Connection Type	SAE	Number of Positions	3 way
Cavity Size	C12-3	Connection Size	-12
