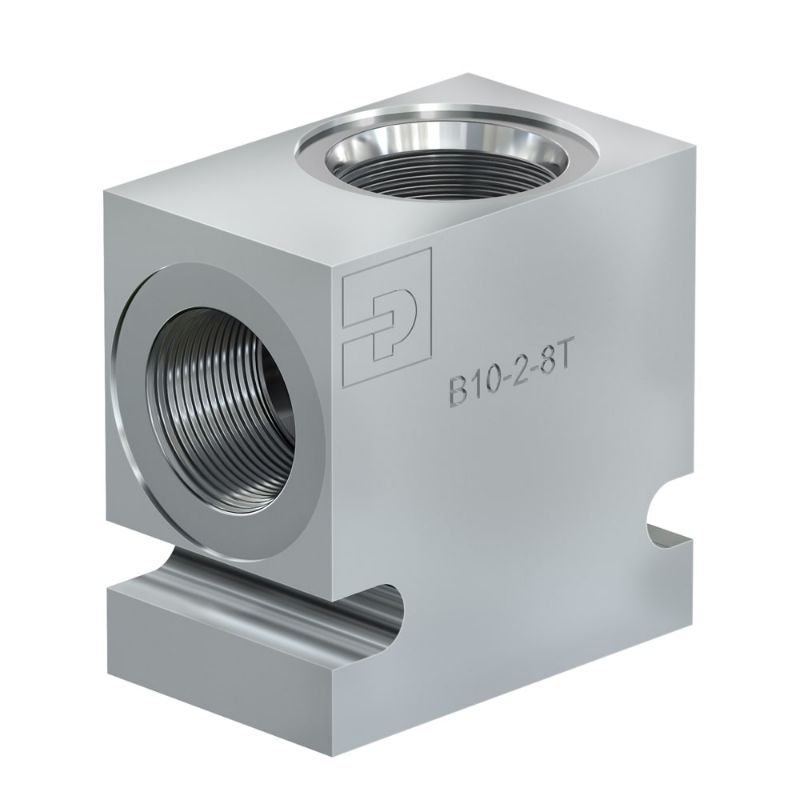

Parker B10-2-A8T - Standard Bodies

Name: Parker B10-2-A8T - Standard Bodies
SKU: B10-2-A8T
Price: 39.00 USD
Availability: InStock

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.

AFP Availability:

4 In Stock

North Chesterfield, VA

Partner Available:

141 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. B10-2-A8T

$39.00/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body
Connection Size	-8	Weight	2 kg
Seal Material	Determined by Threaded Cartridge Valve installed in Line Body	Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body
Maximum Operating Pressure	3000 psi	Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Number of Positions	2-Way	For Fluid Type	Mineral-based Hydraulic Fluids
Connection Type	SAE	Division	Hydraulic Cartridge Systems Division
Cavity Size	C10-2	Body Material	Aluminum
Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body	Division	Hydraulic Systems Division
Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Connection Type	SAE
Body Material	Aluminum	Connection Size	-8
Number of Positions	2 way	Cavity Size	C10-2
