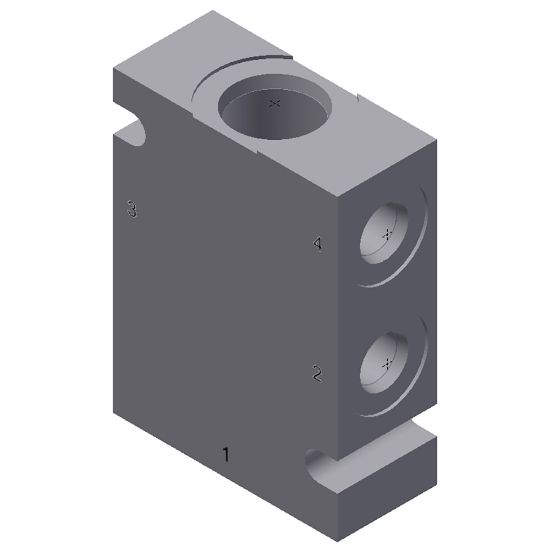

Parker B08-4-A6T - Standard Bodies

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.

AFP Availability:	Quote Required
Partner Available:	71 In Stock

Brand Parker

Part No. B08-4-A6T

$76.89/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body
Body Material	Aluminum	Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Division	Hydraulic Systems Division	Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body
Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body	Weight	0.27 kg
Maximum Operating Pressure	210 bar	Connection Size	-6
Seal Material	Determined by Threaded Cartridge Valve installed in Line Body	Number of Positions	4-Way
Connection Type	SAE	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Mineral-based Hydraulic Fluids	Cavity Size	C08-4
Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Connection Type	SAE
Body Material	Aluminum	Cavity Size	C08-4
Connection Size	-6	Number of Positions	4 way
