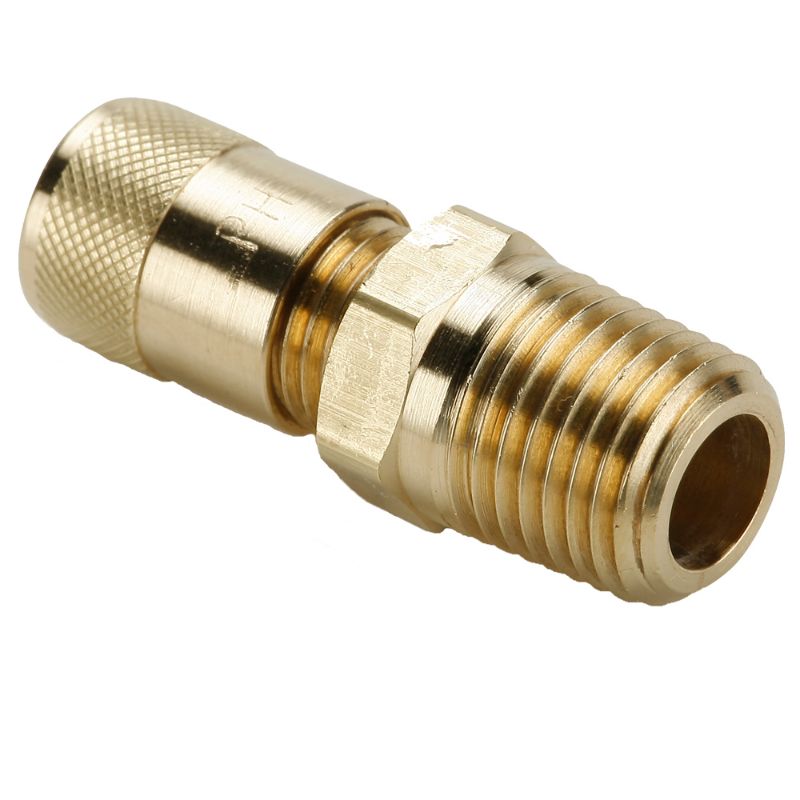

Parker AVU1-4 - Refrigeration Access Valves

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AVU1-4

$9.62/each

Products specifications

Attribute name	Attribute value
UOM	EA	Nut Material	Brass
Media	Fluorocarbon Refrigerants	Body Material	Brass
Minimum Operating Temperature	-20 °F	Specifications Met	Valve Core Meets ARI Standard 720
Maximum Operating Pressure	500 psi	Dimensional Weight	0.5518884892086331 lb
Division	Fluid System Connectors Division	Maximum Operating Temperature	104 °C
Connection 2 Tube O.D. (inch)	na	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Style	Male Pipe	Connection 1 Style	SAE Male Flare
Connection 2 Solder O.D. (inch)	5/16	Shape	Male Connector
Style	Flare to Male Pipe	Connection 2 Thread Size (inch)	14
