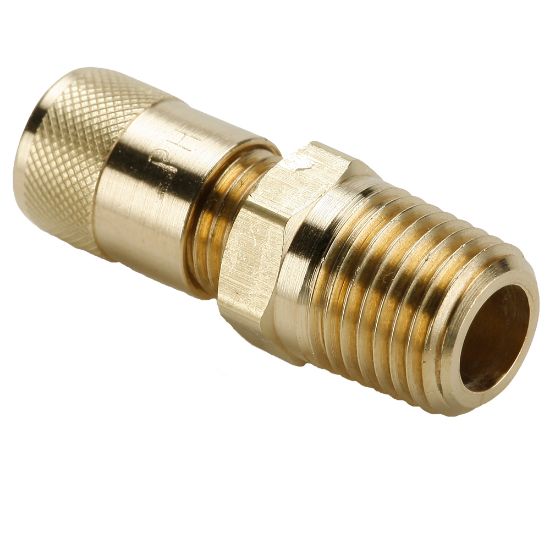

Parker AVU1-2 - Refrigeration Access Valves

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AVU1-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Brass
Maximum Operating Pressure	34 bar	Nut Material	Brass
Dimensional Weight	0.5518884892086331 lb	Maximum Operating Temperature	220 °F
Specifications Met	Valve Core Meets ARI Standard 720	Minimum Operating Temperature	-28 °C
Media	Fluorocarbon Refrigerants	Connection 2 Thread Size (inch)	1/8
Connection 2 Tube O.D. (inch)	na	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Style	Male Pipe	Connection 1 Style	SAE Male Flare
Shape	Male Connector	Style	Flare to Male Pipe
Connection 2 Solder O.D. (inch)	1/4

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
