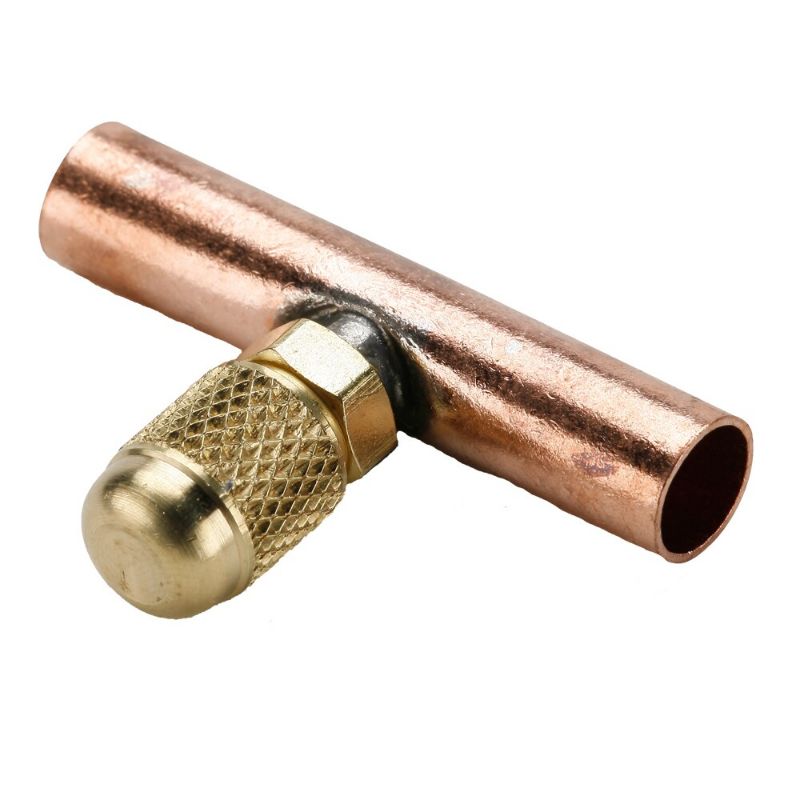

Parker AVTS-6 - Refrigeration Access Valves

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AVTS-6

$22.51

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Maximum Operating Pressure	34 bar
Nut Material	Brass	Maximum Operating Temperature	220 °F
Specifications Met	Valve Core Meets ARI Standard 720	Minimum Operating Temperature	-28 °C
Media	Fluorocarbon Refrigerants	Dimensional Weight	0.040467625899280574 lb
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	3/8
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Style	Solder
Connection 1 Style	SAE Male Flare	Shape	Solder Tee
Style	Flare to Solder	Connection 2 Solder O.D. (inch)	1/2
