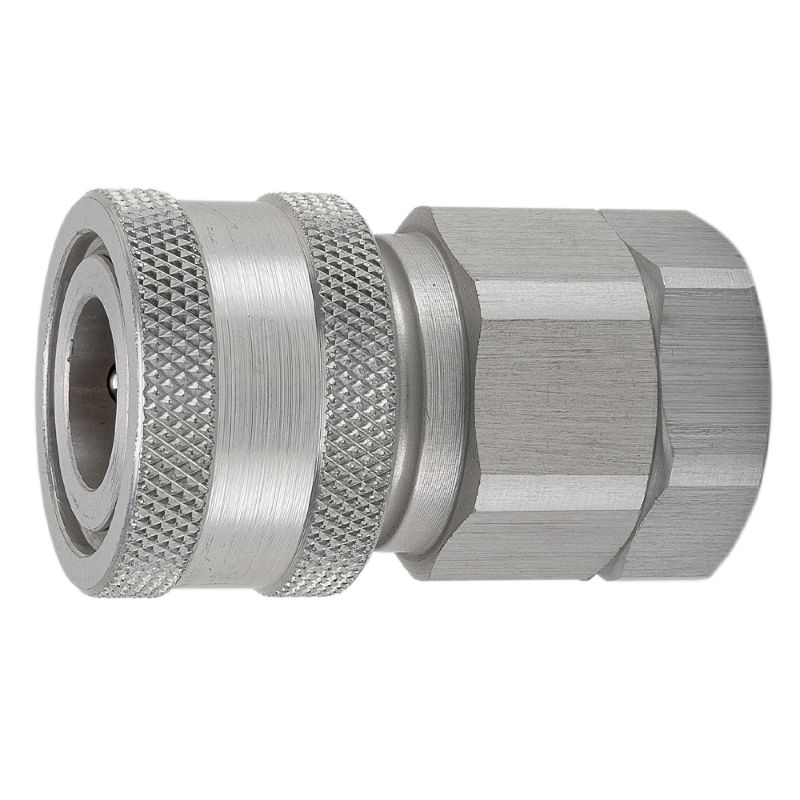

Parker AVHC4-4F - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AVHC4-4F

$44.32/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Valve Type	Poppet	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Hex Size	1.00 inch
Body Material	Aluminum	Product Type	Manual Connect
Plating Type	na	Minimum Operating Temperature	-40 °F
Application	Hydraulic, General Purpose	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Female Coupler
Connection Type	Female NPTF	Valve Type	Poppet
Body Material	Aluminum	Maximum Operating Pressure	2250
