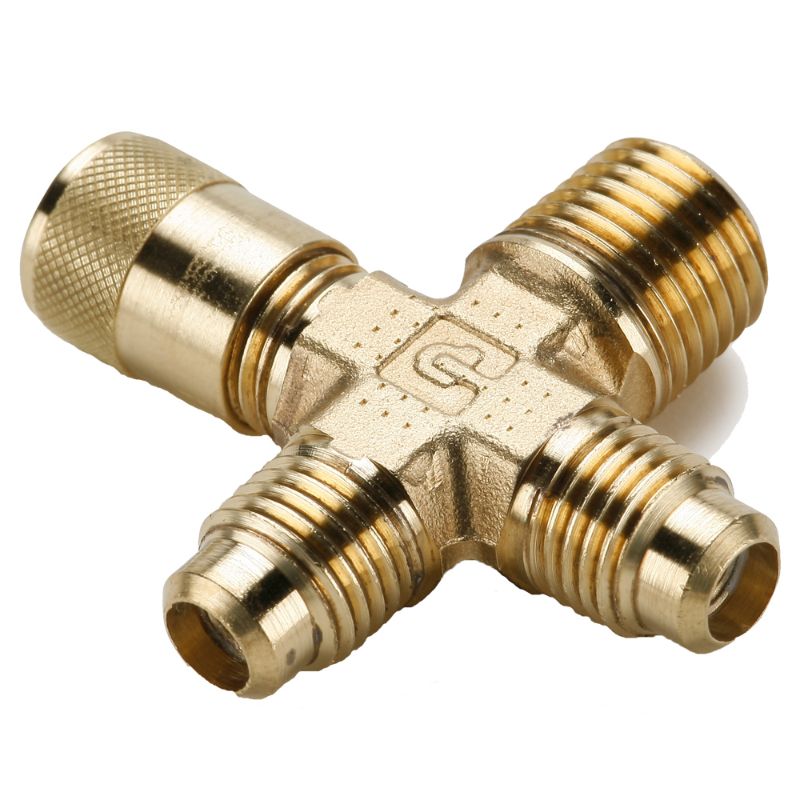

Parker AVC1-4 - Refrigeration Access Valves

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AVC1-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Brass
Maximum Operating Pressure	34 bar	Nut Material	Brass
Maximum Operating Temperature	220 °F	Specifications Met	Valve Core Meets ARI Standard 720
Minimum Operating Temperature	-20 °F	Media	Fluorocarbon Refrigerants
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Tube O.D. (inch)	1/4
Connection 2 Thread Size (inch)	1/4	Connection 2 Style	Male Pipe
Style	Flare to Pipe	Connection 1 Style	SAE Male Flare
Shape	Male Cross	Connection 2 Solder O.D. (inch)	5/16

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
