*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

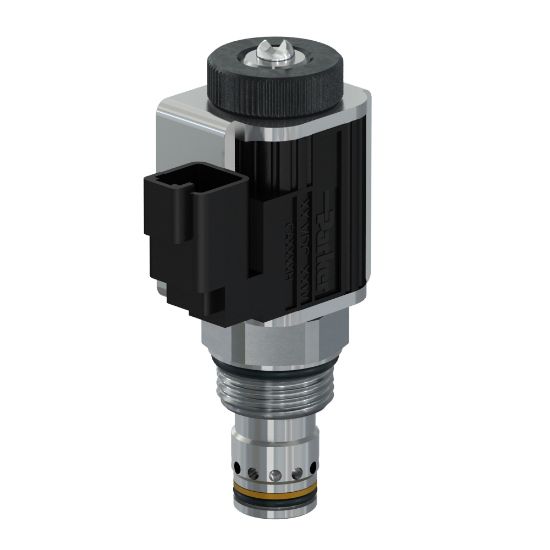

Parker AP04G2YR10CV - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AP04G2YR10CV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Maximum Operating Temperature	204 °C
Maximum Operating Pressure	1500 psi	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Weight	0.14 kg	Division	Hydraulic Systems Division
Leak Rate	5	Flow Direction	Nose to Side (1-2)
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Steel
Operating Temperature	-15 to 400 °F	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15 °F
Flow Rate	25 Gal/min	Maximum Flow Rate	25 Gal/min
Maximum Pressure Setting	n/a	Mounting Type	Screw-in Cartridge
Cavity Size	C10-2	Maximum Inlet Pressure Rating	350 bar
Cracking Pressure	n/a	Function	Proportional Pressure Relief
Coil Type	1/2" Super Coil High Watt (CCP)	Frequency	100 to 400 Hz
Hysteresis	< 7 %	Configuration	Decreasing Pressure/Increasing Current
Operation Type	Solenoid Operated	Power Consumption	19 W
Installation Torque	34 Nm	Pressure Control Range	n/a
Maximum Relief Pressure	103 bar	Coil Nut Tightening Torque	3 lb-ft
Seal Material	Fluorocarbon	Flow Rate	25 GAL/MIN, 95 L/MIN
Configuration	Decreasing Pressure/Increasing Current	Maximum Relief Pressure	1000 PSI, 70 BAR
