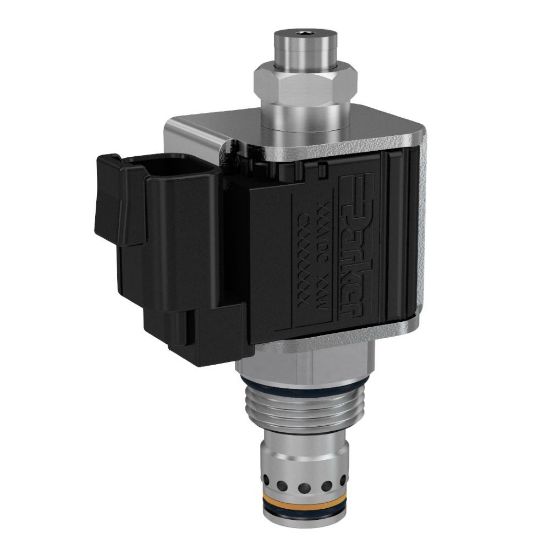

Parker AP04G2YP35CN - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AP04G2YP35CN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Seal Material	Nitrile
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Cartridge Systems Division	Weight	0.14 kg
Division	Hydraulic Systems Division	Flow Direction	Nose to Side (1-2)
For Fluid Type	Mineral-based Hydraulic Fluids	Valve Material	Steel
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-34 °C
Flow Rate	25 Gal/min	Maximum Flow Rate	95 L/min
Maximum Pressure Setting	n/a	Mounting Type	Screw-in Cartridge
Operating Temperature	-30 to 250 °F	Leak Rate	n/a
Cavity Size	C10-2	Maximum Inlet Pressure Rating	350 bar
Cracking Pressure	n/a	Function	Proportional Pressure Relief
Coil Type	1/2" Super Coil High Watt (CCP)	Frequency	100 to 400 Hz
Hysteresis	< 7 %	Configuration	Increasing Pressure/Increasing Current
Operation Type	Solenoid Operated	Power Consumption	19 W
Installation Torque	25 lb-ft	Pressure Control Range	n/a
Maximum Relief Pressure	5000 psi	Coil Nut Tightening Torque	3 lb-ft
Seal Material	Nitrile	Flow Rate	25 GAL/MIN, 95 L/MIN
Configuration	Increasing Pressure/Increasing Current	Maximum Relief Pressure	5000 PSI, 350 BAR
