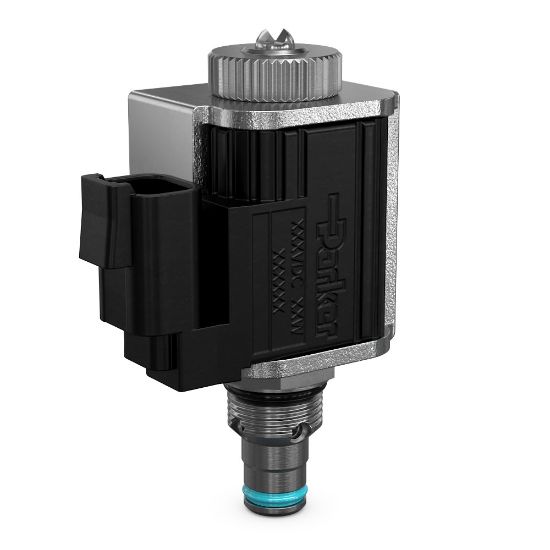

Parker AP02B2YR07AL - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AP02B2YR07AL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Maximum Operating Pressure	1000 psi
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Flow Direction	Nose to Side (1-2)
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Hardened Steel
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Maximum Operating Temperature	93 °C
Weight	0.19 lb	Maximum Pressure Setting	n/a
Mounting Type	Screw-in Cartridge	Cavity Size	C08-2
Leak Rate	n/a	Maximum Inlet Pressure Rating	350 bar
Operating Temperature	-35 to 200 °F	Function	Proportional Pressure Relief
Coil Type	5/8" Super Coil High Watt (CAP)	Flow Rate	5.3 L/min
Frequency	100 to 400 Hz	Hysteresis	< 10 %
Configuration	Decreasing Pressure/Increasing Current	Seal Material	D-Ring (Standard)
Operation Type	Solenoid Operated	Cracking Pressure	0.07 bar
Maximum Flow Rate	1.4 Gal/min	Power Consumption	28 W
Installation Torque	30 Nm	Pressure Control Range	n/a
Maximum Relief Pressure	1000 psi	Coil Nut Tightening Torque	Finger Tight
Flow Rate	1.4 GAL/MIN, 5.3 L/MIN	Configuration	Decreasing Pressure/Increasing Current
Seal Material	D-Ring (Standard)	Maximum Relief Pressure	1000 PSI, 70 BAR
