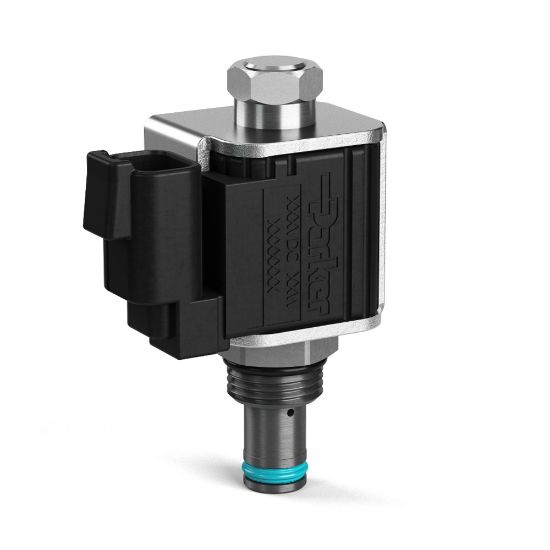

Parker AP02B2YP14CN - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AP02B2YP14CN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Seal Material	Nitrile
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Flow Direction	Nose to Side (1-2)
For Fluid Type	Mineral-based Hydraulic Fluids	Valve Material	Hardened Steel
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	121 °C	Maximum Operating Pressure	2000 psi
Minimum Operating Temperature	-34 °C	Weight	0.06 kg
Maximum Pressure Setting	n/a	Mounting Type	Screw-in Cartridge
Cavity Size	C08-2	Operating Temperature	-30 to 250 °F
Maximum Inlet Pressure Rating	5000 psi	Function	Proportional Pressure Relief
Coil Type	1/2" Super Coil High Watt (CCP)	Flow Rate	1.4 Gal/min
Frequency	100 to 400 Hz	Leak Rate	30
Hysteresis	5 %	Configuration	Increasing Pressure/Increasing Current
Operation Type	Solenoid Operated	Cracking Pressure	0.14 bar
Maximum Flow Rate	1.4 Gal/min	Power Consumption	19 W
Installation Torque	30 Nm	Pressure Control Range	n/a
Maximum Relief Pressure	2000 psi	Coil Nut Tightening Torque	3 lb-ft
Seal Material	Nitrile	Flow Rate	0.9 GAL/MIN, 3.4 L/MIN
Configuration	Increasing Pressure/Increasing Current	Maximum Relief Pressure	2000 PSI, 140 BAR
