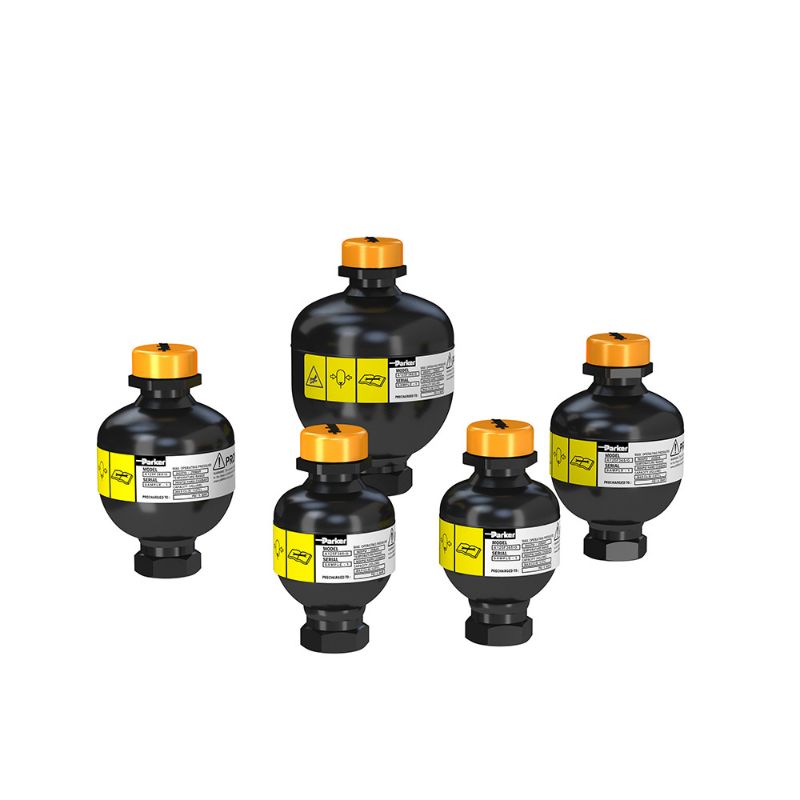

Parker AD032B21T9A1 - Diaphragm Accumulators - AD Series - (Americas)

Diaphragm accumulators provide an affordable means of storing energy under pressure, absorbing hydraulic shocks, dampening pump pulsation/flow fluctuations. They provide dependable performance in a lightweight, compact design.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AD032B21T9A1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Gas Volume	20 inch3	Compression Ratio	8:1
Operating Temperature	-40 to 176 °F	Specifications Met	Consult Factory
Height	5.55 inch	Repairable	Non-Repairable
Division	Accumulator and Cooler Division	Body Material	High Strength Alloy Steel
Diaphragm Material	Hydrin	Maximum Flow Rate	26 Gal/min
Maximum Operating Pressure	3000 psi	Weight	1.8 kg
Port Type	SAE #8 (3/4-16 UNF) Female	Diameter	95 mm
Nominal Volume (l)	0.32 l	Valve Type	US Style Gas Valve (ISO 4570-8VI)
