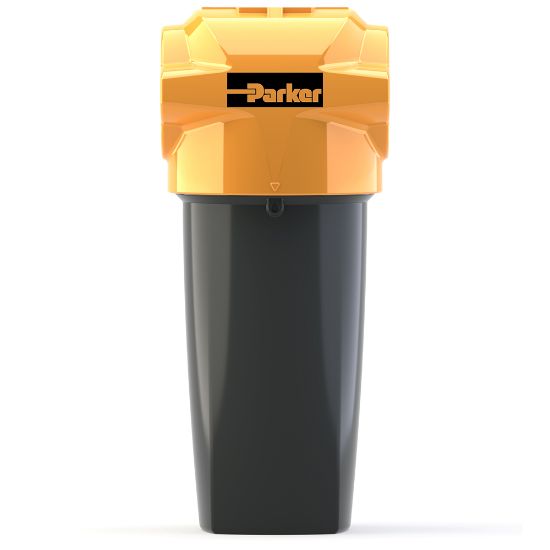

Parker ACSPX030GNMX - OIL-X 'Point Of Use' Oil Vapour Reduction Filters

Activated carbon filters for the reduction of oil vapour and hydrocarbon odours, providing a maximum remaining oil content of <0.003mg/m³ (<0.003ppm) @ 21°C (70°F).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ACSPX030GNMX

$1,333.26

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Technology	Filtration	Division	Gas Separation and Filtration Division EMEA
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Application	Compressed Air and Nitrogen Gas Applications
Division	Gas Separation and Filtration Division EMEA	Micron Rating	n/a
Product Type	Compressed Air Filter	Operating Pressure	1 to 20 barg
Materials of Construction	Die Cast Aluminium	Depth	115.0 mm
Width	120.0 mm	Height	367.0 mm
Weight	3.01 kg	Pressure Differential	0.9
Product Series	OIL-X Grades ACS and AC	Filter Type	Oil Vapour Reduction
Compatible Element	P030ACS	Specifications Met	Fully tested - In accordance with ISO8573-5<br/><br/>Filtration performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II
Residual Oil Content	0.003 mg/m³ / 0.003 ppm(w) <br/>@ 21°C (70°F)	Operating Temperature	35 to 122 °F
Element Change Interval	When oil vapour is detected	Connection Type	NPT
Drain	Manual	Port Size	1½ inch
Maximum Flow Rate	396 m³/h @ 7 barg (233 cfm @ 102 psig)	Filter Stages	Single Stage
