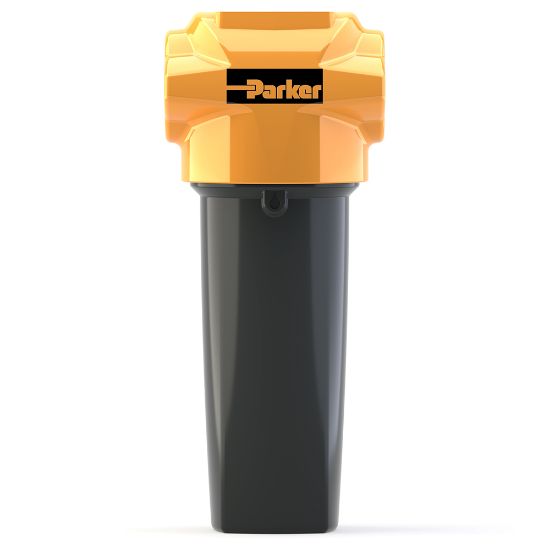

Parker ACSPX010ANMX - OIL-X 'Point Of Use' Oil Vapour Reduction Filters

Activated carbon filters for the reduction of oil vapour and hydrocarbon odours, providing a maximum remaining oil content of <0.003mg/m³ (<0.003ppm) @ 21°C (70°F).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ACSPX010ANMX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Application	Compressed Air and Nitrogen Gas Applications	Division	Gas Separation and Filtration Division EMEA
Micron Rating	n/a	Weight	1.8 lb
Product Type	Compressed Air Filter	Depth	65.0 mm
Width	76.0 mm	Height	180.0 mm
Operating Pressure	1 to 20 barg	Materials of Construction	Die Cast Aluminium
Product Series	OIL-X Grades ACS and AC	Filter Type	Oil Vapour Reduction
Compatible Element	P010ACS	Specifications Met	Fully tested - In accordance with ISO8573-5<br/><br/>Filtration performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II
Residual Oil Content	0.003 mg/m³ / 0.003 ppm(w) <br/>@ 21°C (70°F)	Operating Temperature	2 to 50 °C
Pressure Differential	0.9 psi Initial Dry, 100% Flow	Element Change Interval	When oil vapour is detected
Connection Type	NPT	Port Size	¼ inch
Drain	Manual	Maximum Flow Rate	36 m³/h @ 7 barg (21 cfm @ 102 psig)
Filter Stages	Single Stage
