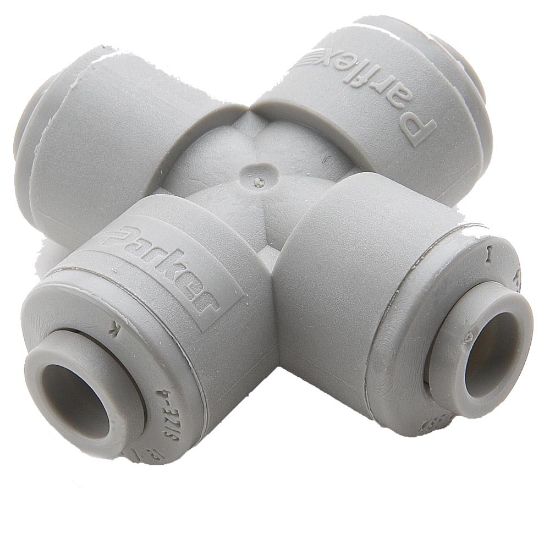

Parker A4CU4-MG - Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal

Parker's TrueSeal push-in tube fittings are manufactured from FDA compliant materials and are NSF-51 listed for contact with food. Gray acetal fittings meet NSF-61 requirements for potable water.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. A4CU4-MG

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	20 bar	Seal Material	EPDM (O-Ring)
Minimum Operating Temperature	-29 °C	Specifications Met	NSF/ANSI 51
Division	Fluid System Connectors Division	Maximum Operating Temperature	82.2 °C
Body Material	Acetal	Configuration	Tube to Tube
Connection 4 Type	Push-to-Connect	Connection 1 Type	Push-to-Connect
Body Material	Acetal	Connection 3 Size	1/4"
Connection 1 Size	1/4"	Shape	Cross
Connection 2 Size	1/4"	Color	Gray
Connection 4 Size	1/4"	Connection 2 Type	Push-to-Connect
Connection 3 Type	Push-to-Connect
