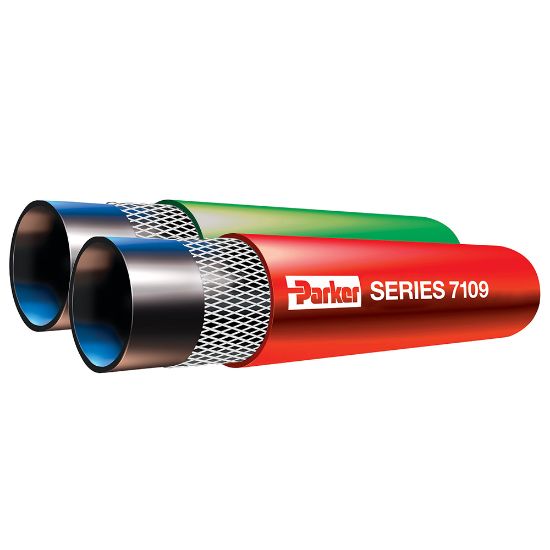

Parker 7109-251 - SIAMEEZ® Grade T Twin Line Welding Hose, Series 7109

Note: This product is no longer available - please contact us for further assistance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7109-251

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Hose Reinforcement Material	2 Plies of Textile	Maximum Operating Pressure	1.4 MPa
Minimum Operating Temperature	-40 °F	Division	Hose Products Division
Maximum Operating Temperature	93 °C	Inside Diameter	6.4 mm
Specifications Met	CGA	Cover Color	Red
Outside Diameter	0.050 inch	Application	Compressed Gas
Minimum Bend Radius	3 inch	Media	Fuels - Check fuel type with our catalogue chart.
Weight	0.21 lb/ft	Hose Inner Tube Material	Chloroprene
Cover Material	Chloroprene Rubber (CR)	Hose I.D. (inch)	1/4

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
