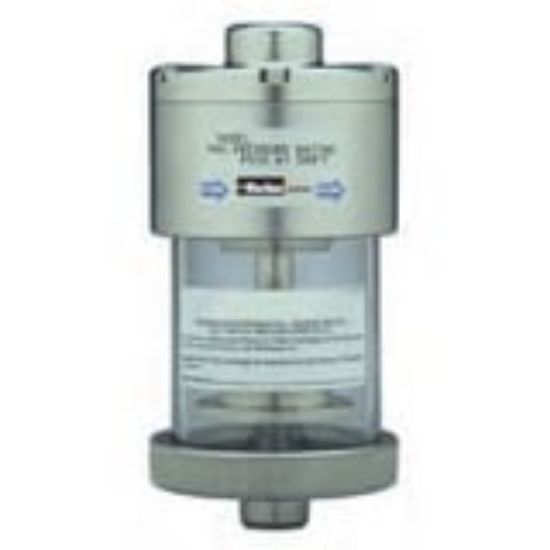

Parker A39/12-BX-2 - Sample Filters

Parker Balston gas and liquid sample filters protect sensitive analyzers from sample impurities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. A39/12-BX-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Gas Filtration and Generation Division	Weight	2.4 lb
Maximum Operating Pressure	29.3 barg	Port Type	NPT
Filter Type	Membrane Coalescing Filter	Maximum Operating Temperature	204 °C
Height	7.3 inch	Materials of Construction	Stainless Steel
Brand	Balston	Compatible Element	150-12-?? (Dependent on Filter Media Grade)
Micron Rating	Various depending on media selected.	Flow Rate	2.47 ft3/min
Volume	n/a	Drain Port Size	n/a
Filter Efficiency Rating	99.99 %	Port Size	1/2 inch
Width	83.8 mm	Flow Rate (CFM)	2.47
Materials of Construction	Stainless Steel	Filtration Efficiency	99.99%
Port Connection (inch)	1/2	Maximum Operating Pressure (psig)	425
Filter Type	Membrane Coalescing Filter
