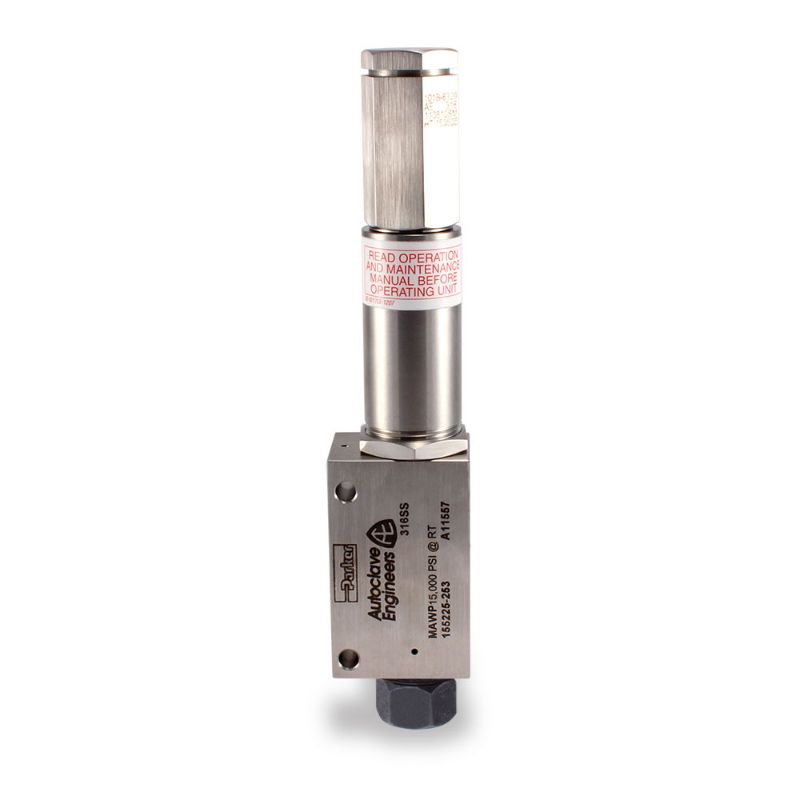

Parker 9MP712-MARA-10000-2507 - Relief Valves, High Pressure - MAR Series

Parker’s MAR Series (Hard and Soft Seat) relief valves provide reliable venting of gases or liquids for set pressures from 1,500 PSI (103 BAR) minimum to 15,000 PSI (1034 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 9MP712-MARA-10000-2507

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	15000	Maximum Operating Temperature	400
Minimum Operating Pressure	10000	Division	Instrumentation Products Division
Orifice Size	0.188	Minimum Operating Temperature	-423
Outlet Connection Size	FNPT 3/4	Inlet Connection Size	9/16" MPI
Maximum Working Pressure (psi)	15000	Maximum Working Temperature (F)	400
Orifice Size	0.188	Minimum Working Temperature (F)	-423
Material	Super Duplex	Seat Type	Metal Seat
Outlet Connection	3/4" FNPT	Minimum Working Pressure (psi)	10000
Inlet Connection	9/16" MPI

Product resources

02-0142SE

Autoclave Engineers Technicial/Special Materials Data Catalog (PDF)
