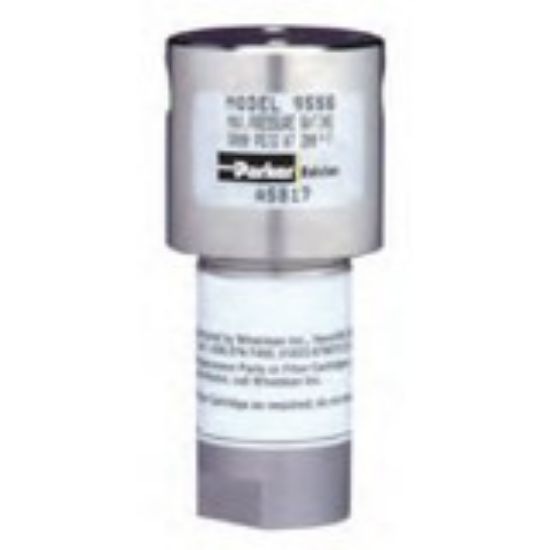

Parker 95M-1/4 - Sample Filters

Parker Balston gas and liquid sample filters protect sensitive analyzers from sample impurities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 95M-1/4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Division	Industrial Gas Filtration and Generation Division
Port Size	1/4 inch	Maximum Operating Temperature	400 °F
Width	1.8 inch	Brand	Balston
Weight	0.4 kg	Drain Port Size	1/4 inch
Micron Rating	Various depending on media selected.	Filter Efficiency Rating	Dependent on Media Selection
Volume	19.82 cm3	Flow Rate	27 ft3/min
Compatible Element	050-11-??(Dependent on Filter Media Grade)	Height	101.6 mm
Maximum Operating Pressure	344.74 barg	Filter Type	Standard Volume Bypass or Slipstream T-type filter
Materials of Construction	Monel	Port Connection (inch)	1/4
Filtration Efficiency	Dependent on media selection	Maximum Operating Pressure (psig)	5000
Materials of Construction	Monel	Flow Rate (CFM)	27
Filter Type	Standard Volume Bypass or Slipstream T-type filter
