Parker 936966Q - ParFit™ Interchange and Parker Replacement Element

Parker Original Hydraulic and Lube Oil Element and ParFit™ Competitive Interchange Replacement

AFP Availability:	Quote Required
Partner Available:	40 In Stock

Brand Parker

Part No. 936966Q

$96.83/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	10 Micron Absolute
Seals	NBR: Nitrile	Efficiency βx(C) ≥ 1000	12 µ
Pkg Qty	1	Collapse Pressure (psi)	150 psi
Efficiency βx(C) ≥ 200	9 µ	UOM	EA
Collapse Pressure (bar)	10.3 bar	Media Type	Microglass
Parker Group	Filtration	Glue Side Seam Adhesive	Epoxy
Media	10 Micron Absolute	E Dimension	0.488 in (12.4 mm)
Collapse Pressure (bar)	10.3 bar	Collapse Pressure (psi)	150 psi

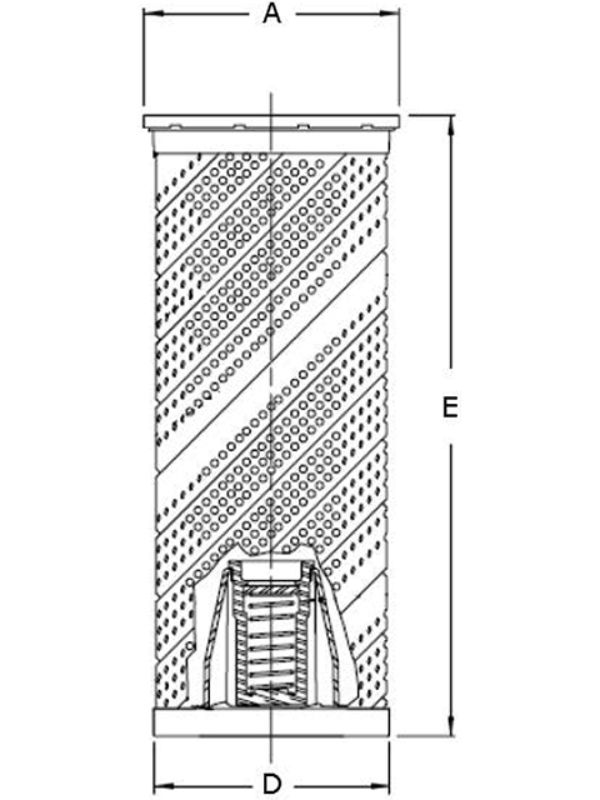

A Dimension	3.421 in (86.9 mm)	D Dimension	3.091 in (78.5 mm)
Outer Support Cylinder Material	Steel tin plated	Series	ParFit
Efficiency βx(C) ≥ 200	9 µ	Top Endcap Material	Glass reinforced nylon
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	Bottom Endcap Material	Glass reinforced nylon
Efficiency βx(C) ≥ 1000	12 µ	Glue Endcaps Adhesive	Epoxy
Media Type	Microglass	Parker Division	Hydraulic Filter
Seals	NBR: Nitrile
