Parker 936601Q - Replacement Elements - Medium Pressure Filter 15/40/80 CN Series

Name: Parker 936601Q - Replacement Elements - Medium Pressure Filter 15/40/80 CN Series
SKU: 936601Q
Price: 118.54 USD
Availability: InStock

The Parker medium pressure CN series replacement elements are engineered with the latest in Microglass technology. CN Filters utilize a reusable core which remains in service through the life of the assembly.

Availability:

47 In Stock

Mooresville, NC	42
Greensboro, NC	3
Grovetown, GA	2

Partner Available:

94 In Stock

Brand Parker

Part No. 936601Q

$118.54

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	Coreless	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Seal Material	Fluorocarbon	Filter Element	10Q Microglass
Length	single	Filter Housing Series	40CN2
UOM	EA	Efficiency βx(C) ≥ 1000	12 µ
Collapse Pressure (psi)	150 psi	Media	10 Micron Absolute
Pkg Qty	1	Collapse Pressure (bar)	10.3 bar
Media Type	Microglass	Seals	FKM: Fluorocarbon
Efficiency βx(C) ≥ 200	9 µ	Media	10 Micron Absolute

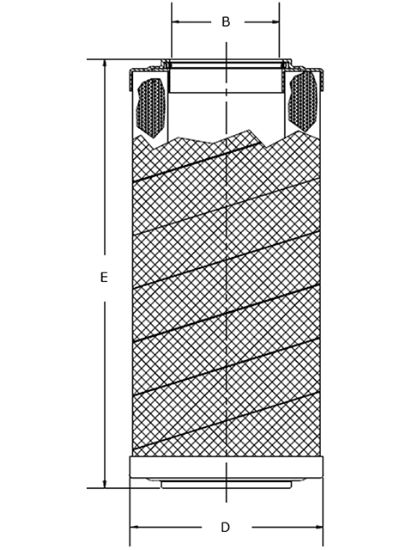

B Dimension	1.693 in (43 mm)	Filter Media Code	10QE
Series	ParFit	Parker Division	Hydraulic Filter
Media Type	Microglass	Top Endcap Material	Glass reinforced nylon
Efficiency βx(C) ≥ 200	9 µ	Element Length	Double
Efficiency βx(C) ≥ 1000	12 µ	D Dimension	0.315 in (8 mm)
Bottom Endcap Material	Glass reinforced nylon	E Dimension	8.386 in (213 mm)
Glue Endcaps Adhesive	Polyurethane	Collapse Pressure (psi)	150 psi
Media Composition Detail	Multilayer fiberglass with PBT mesh on both sides	Collapse Pressure (bar)	10.3 bar
Parker Group	Filtration	Glue Side Seam Adhesive	Polyurethane
Operating Temperature	-40F to 225F (-40C to 107C)	Seals	FKM: Fluorocarbon
