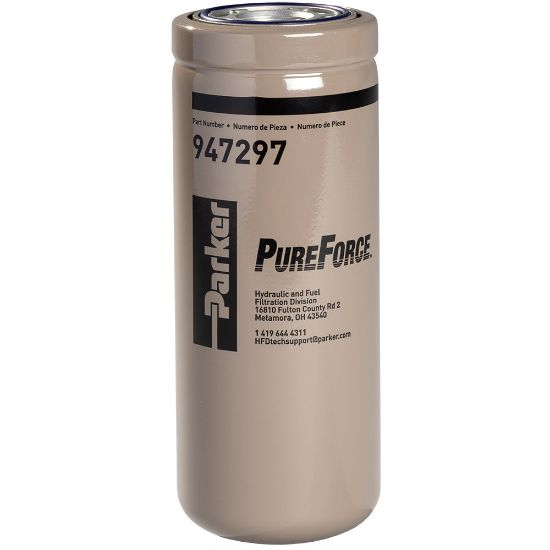

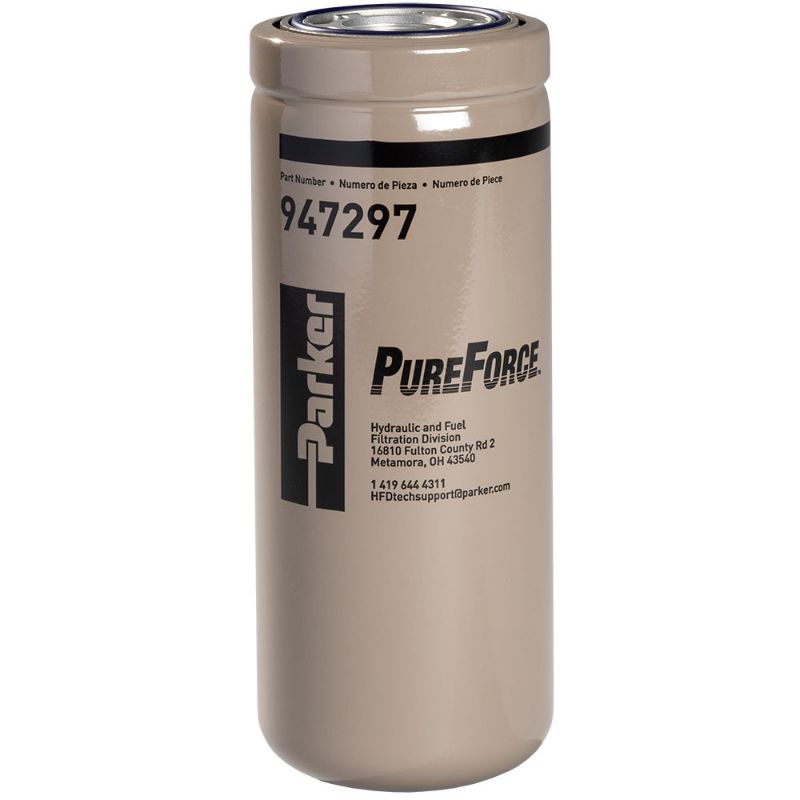

Parker 947297 - PureForce Medium Pressure Spin-On

Parker’s dedication to protecting critical process equipment has led to the development of our new PureForce medium pressure spin on filte. PureForce elements provide filtration for hydraulic systems up to 500psi.

AFP Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. 947297

$87.87/each

Products specifications

Attribute name	Attribute value
UOM	EA	Operating Temperature	-29 to 107 °C
Collapse Pressure	1035.0 kPa	Media Material	Maximum Performance Glass
Outside Diameter	3.75 inch	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Length	9.5 in (241.3 mm)	Flow Range	35 gpm (132 lpm)
Micron Rating	9

Product resources

Literature and Reference Materials

EMHFF - The Handbook of Hydraulic Filtration (PDF)
