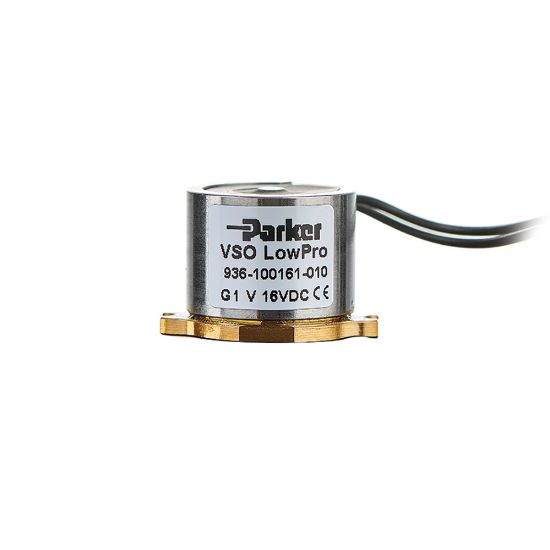

Parker 936-071161-010 - VSO® LowPro Miniature Analytical Proportional Valve

Designed for 1 SCCM to 6.5 SLPM gas flow control in analytical instruments, the Parker VSO® LowPro GC proportional valve is compact, durable and easy to mount. High duty cycle and dynamic temperature range conforms to all analytical platforms.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 936-071161-010

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Function	Normally Closed (NC)	Response Time	10 ms Typical
Wetted Material	Urethane	Mounting Type	Manifold
Minimum Operating Temperature	-4 °F	Cycles per Lifetime	100 Million
Connection Type	Mounting Screw	Shipping Weight	0.06
Weight	19 g	Length	0.80 inch
Orifice Size	0.010 mm	Armature Material	1018 Steel (Nickel-plated)
Height	0.53 inch	Control Method	Current or Voltage
Input Voltage	16 VDC	Width	16 mm
Out of Stock Lead Time	40	Max Order Quantity	30
Configuration	n/a	Division	Precision Fluidics Division
Actuation Type	Solenoid	Maximum Flow Rate	3.5 SLPM
Electrical Connection	4.5" Wire Leads	Flow Rate	up to 3.5 SLPM
Body Material	Brass C36000	Power Consumption	0.7 W
Seal Material	FFKM	Spring Material	Stainless Steel 17-7
For Fluid Type	Gases	Thermal Compensation	Non-Thermally Compensated
Industry Application	Gas Chromatography	Maximum Operating Pressure	10.3 bar
Leak Rate	0.030 cm3/min of Helium @ 150 Psi	Connection Size	#2-56 x 3/16" Socket Head Cap screw
Standard Lead Time	25	Operation Type	Electronic
Maximum Operating Temperature	85 °C	Vacuum to Pressure Range	686.0 mm-Hg to Pressure Rating
Performance: Pressure Range	0-150 psi	Orifice Size (inch)	0.007
Wetted Materials:Seal (Elastomer)	FFKM	Voltage (VDC)	16
