Parker 932360 - Replacement Elements - Low Pressure Filter Moduflow™ Plus Series

The patented Parker Moduflow™ Plus Series Low Pressure In-Line Suction/Return/Duplex Filter element features longer element life, increased dirt-holding capacity and requires fewer element changes, reducing system maintenance costs.

Availability:	Quote Required
Partner Available:	14 In Stock

Brand Parker

Part No. 932360

$77.98

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element Type	Cartridge
Compatible Series	Moduflow™	Micron Rating	10.0 MICRON
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Seal Material	Nitrile
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Length	Single
Product Type	Hydraulic Filter Element	Micron Rating	10 µm
Seal Material	Nitrile	Length	single
Filter Housing Series	RF2, IL2, DIL2	Media	Cellulose
UOM	EA	Efficiency βx(C) ≥ 200	10 (nominal) µ
Collapse Pressure (bar)	5 bar	Media Type	Cellulose (Paper)
Pkg Qty	1	Collapse Pressure (psi)	73 psi

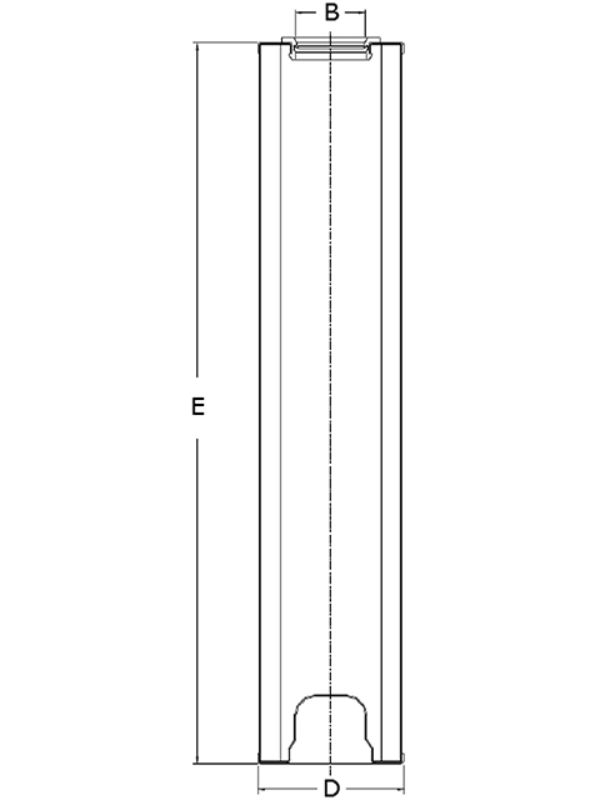

Seals	NBR: Nitrile	E Dimension	0.941 in (23.9 mm)
D Dimension	3.689 in (93.7 mm)	Parker Division	Hydraulic Filter
Seals	NBR: Nitrile	Top Endcap Material	Steel
Glue Endcaps Adhesive	Epoxy	Media	10 Micron Nominal
Glue Side Seam Adhesive	Epoxy	Parker Group	Filtration
Media Composition Detail	Single layer cellulose (paper) with coated mesh on both sides	B Dimension	1.78 in (45.2 mm)
Media Type	Cellulose (Paper)	Bottom Endcap Material	Steel
Collapse Pressure (bar)	5 bar	Series	ParFit
Collapse Pressure (psi)	73 psi	Outer Support Cylinder Material	Steel tin plated
Efficiency βx(C) ≥ 200	10 (nominal) µ
