Parker 924448 - Replacement Elements - Low Pressure Filter Moduflow™ Plus Series

Name: Parker 924448 - Replacement Elements - Low Pressure Filter Moduflow™ Plus Series
SKU: 924448
Price: 76.16 USD
Availability: InStock

The patented Parker Moduflow™ Plus Series Low Pressure In-Line Suction/Return/Duplex Filter element features longer element life, increased dirt-holding capacity and requires fewer element changes, reducing system maintenance costs.

AFP Availability:

27 In Stock

Mooresville, NC	14
North Chesterfield, VA	8
Richmond, VA	2 (Pickup only)
Jacksonville, FL	2
Norfolk, VA	1

Partner Available:

105 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 924448

$76.16/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Length	Single
Product Type	Hydraulic Filter Element	Seal Material	Nitrile
Micron Rating	40.0 MICRON	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Filter Element Type	Cartridge
Compatible Series	Moduflow™	Seal Material	Nitrile
Micron Rating	40 µm	Length	single
Media	Synthetic	Filter Housing Series	CF2
Seals	NBR: Nitrile	Pkg Qty	1
Efficiency βx(C) ≥ 200	40 (nominal) µ	Collapse Pressure (psi)	73 psi
Collapse Pressure (bar)	5 bar	Media Type	Synthetic (Polyester)
UOM	EA	Parker Group	Filtration

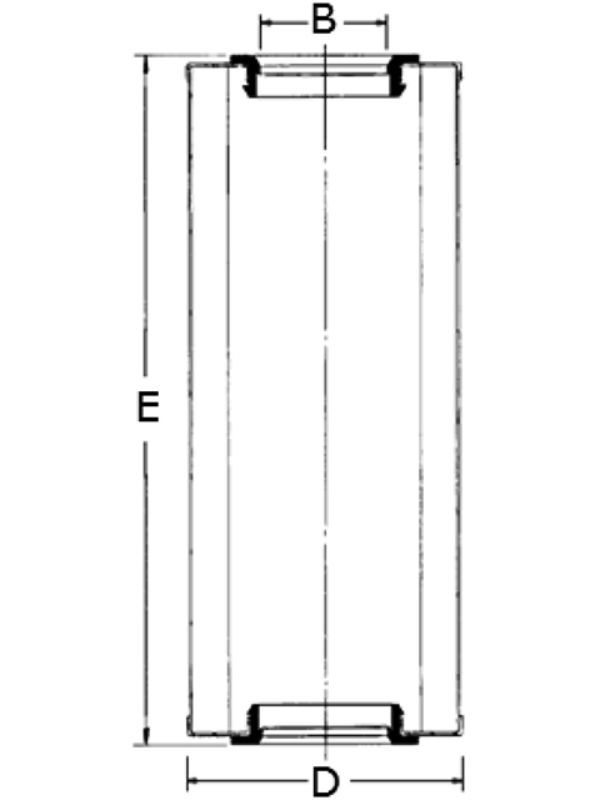

Glue Side Seam Adhesive	Epoxy	B Dimension	1.78 in (45.2 mm)
D Dimension	3.689 in (93.7 mm)	Media Composition Detail	Single layer synthetic (polyester) with coated wire mesh on both sides
Media Type	Synthetic (Polyester)	Media	40 Micron Nominal
Collapse Pressure (bar)	5 bar	Efficiency βx(C) ≥ 200	40 (nominal) µ
Collapse Pressure (psi)	73 psi	Bottom Endcap Material	Steel
E Dimension	0.941 in (23.9 mm)	Competitor	FILTREC
Outer Support Cylinder Material	Steel tin plated	Glue Endcaps Adhesive	Epoxy
Series	ParFit	Parker Division	Hydraulic Filter
Seals	NBR: Nitrile	Top Endcap Material	Steel
