Parker 924792 - Replacement Elements - Low Pressure Filter Moduflow™ Plus Series

The patented Parker Moduflow™ Plus Series Low Pressure In-Line Suction/Return/Duplex Filter element features longer element life, increased dirt-holding capacity and requires fewer element changes, reducing system maintenance costs.

Availability:	Quote Required
Partner Available:	11 In Stock

Brand Parker

Part No. 924792

$126.97

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Division	Engine Mobile Hydraulic and Fuel Filtration Division	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Filter Element Type	Cartridge	Length	Double
Product Type	Hydraulic Filter Element	Micron Rating	10.0 MICRON
Compatible Series	Moduflow™	Seal Material	Nitrile
Micron Rating	10 µm	Length	double
Media	Cellulose	Filter Housing Series	CF2
UOM	EA	Pkg Qty	1
Seals	NBR: Nitrile	Collapse Pressure (bar)	5 bar
Collapse Pressure (psi)	73 psi	Media Type	Cellulose (Paper)
Efficiency βx(C) ≥ 200	10 (nominal) µ	Parker Group	Filtration

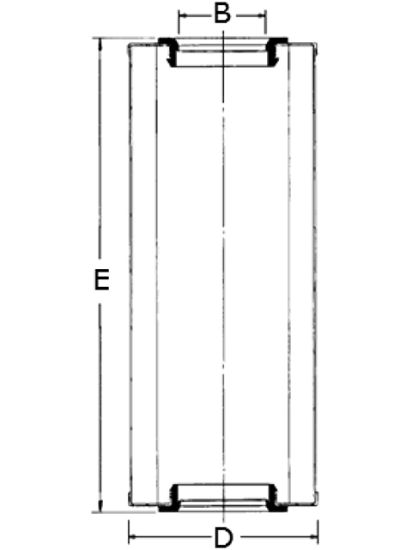

Glue Side Seam Adhesive	Epoxy	E Dimension	18.772 in (476.8 mm)
Efficiency βx(C) ≥ 200	10 (nominal) µ	Bottom Endcap Material	Steel
Media Type	Cellulose (Paper)	Glue Endcaps Adhesive	Epoxy
Media	10 Micron Nominal	Top Endcap Material	Steel
Parker Division	Hydraulic Filter	Seals	NBR: Nitrile
Collapse Pressure (psi)	73 psi	Series	ParFit
Collapse Pressure (bar)	5 bar	Outer Support Cylinder Material	Steel tin plated
B Dimension	1.78 in (45.2 mm)	Media Composition Detail	Single layer cellulose (paper) with coated mesh on both sides
D Dimension	3.689 in (93.7 mm)	Competitor	FILTREC
