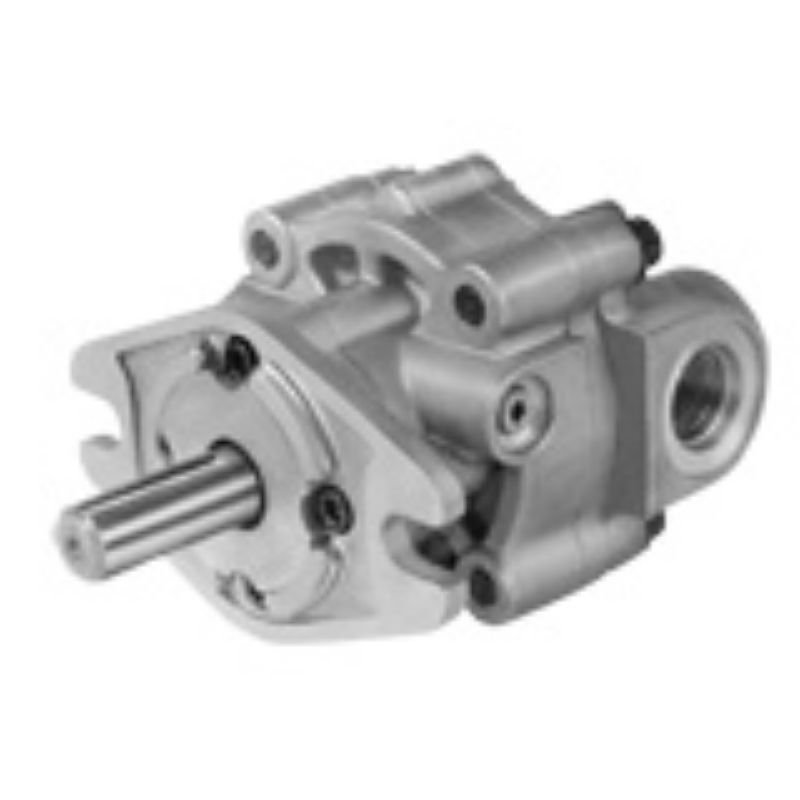

Parker 900246 - Aluminum Motors – MGG Series

Parker’s Aluminum Motor MGG Series fixed displacement High Speed Low Torque Gerotor motor offers high performance and high power density dues to its aluminum construction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 900246

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	2000 psi	Division	Pump & Motor Division
Product Type	Gerotor Motor aluminum with roller bearing	Size	30 inch
Weight	3.5 lb	Flow Rate	11.5 L/min
Shaft Type	Keyed Ø9/16	Displacement	0.7 inch3/rev (Motor)
Mounting Type	SAE 2-Bolt "A-A"	Torque Rating	111 lb-inch
Number of Ports	SAE 10 Straight Thread - Rear	Shaft Seal Material	NBR with dust seal
Direction of Rotation	Bi-Directional	Maximum Oil Temperature	180 °F
Maximum Operating Speed	5000 RPM	Filter Efficiency Rating	10 micron [recommended minimum]
Maximum Continuous Pressure	1500 psi	Maximum Kinematic Viscosity	150 SUS
Size	0030	Porting	SAE 10 Straight Thread - Rear
Rotation	Bi-Direction	Shaft Type	9/16 Dia. Keyed
Weight (lbs)	3.5	Flow Rate (gpm)	3.03
Mounting Style	SAE 2-BOLT "A-A"	Shaft Seal Material	NBR w/dust seal
Motor Displacement (cu in/rev)	0.700
