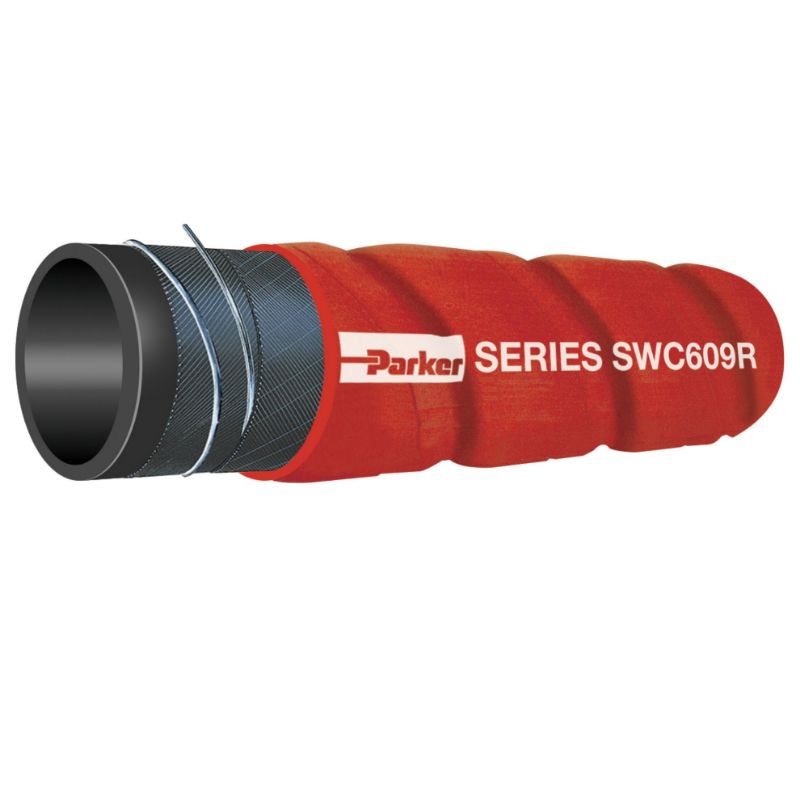

Parker SWC609R-2000 - TITANFLEX® CORRUGATED PETROLEUM TRANSPORT SUCTION HOSE

Titanflex Corrugated Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 200°F and 250 psi

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SWC609R-2000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Media	Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.
Maximum Operating Temperature	82 °C	Outside Diameter	2.450 inch
Application	Petroleum Transfer	Cover Material	Nitrile
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Cover Structure	Corrugated
Maximum Operating Pressure	1.7 MPa	Minimum Operating Temperature	-40 °C
Nominal Hose Inside Diameter	50 mm	Size	-32
Inside Diameter	50.8 mm	Weight	1 lb/ft
Minimum Bend Radius	2 inch	Vacuum Pressure Rating	737 mm-Hg
Hose Inner Tube Material	Nitrile	Hose I.D. (inch)	2
Color	Red
