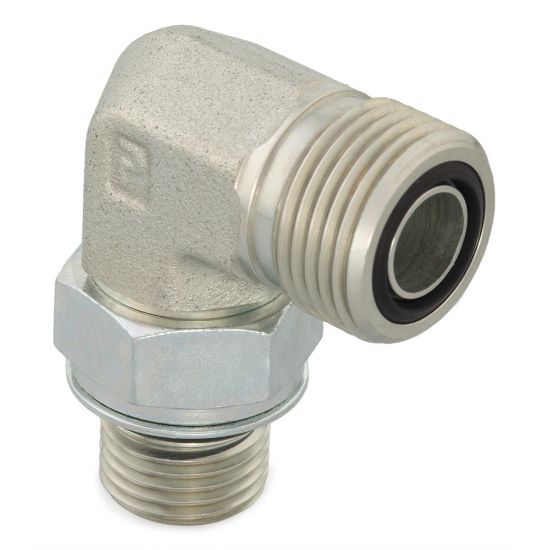

Parker 8M18C87OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:	Quote Required
Partner Available:	19 In Stock

Brand Parker

Part No. 8M18C87OMLOS

$23.03/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Male O-ring Face Seal
Maximum Dynamic Pressure	O-ring Face Seal psi	Connection 3 Type	na
Connection 3 Thread Size	na	Connection 2 Thread Size	M18X1.5 mm
Shape	90° Elbow	Connection 2 Tube Outside Diameter	na
Specifications Met	SAE J1453, ISO 8434-3	Connection 1 Tube Outside Diameter	12 mm
Connection 4 Type	na	Connection 4 Tube Outside Diameter	na
Connection 2 Type	Male ISO 6149	Body Material	Steel
Connection 3 Tube Outside Diameter	na	Dimensional Weight	0.04112185251798561 lb
Connection Type	Tube to ISO 6149	Division	Tube Fittings Division
O-Ring Material	90 Durometer Nitrile
