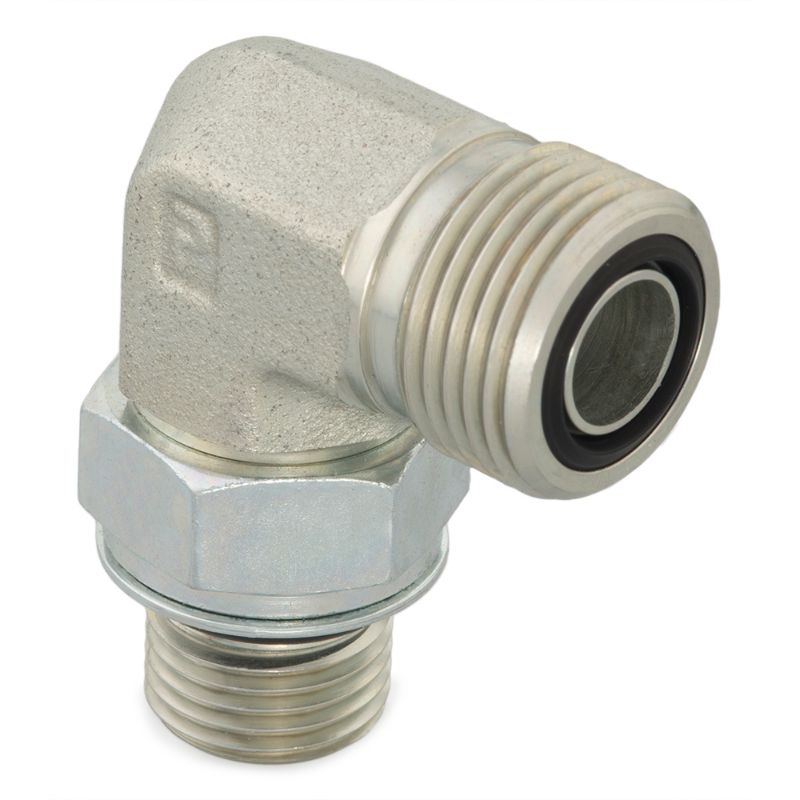

Parker 16M33C87OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. 16M33C87OMLOS

$63.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection 2 Type	Male ISO 6149	Connection 2 Thread Size	M33X2 mm
Shape	90° Elbow	Connection 1 Type	Male O-Ring Face Seal
Connection 2 Tube Outside Diameter	na	Specifications Met	SAE J1453, ISO 8434-3
Maximum Dynamic Pressure	5000 psi	Connection 3 Tube Outside Diameter	na
Connection 3 Thread Size	na	Connection 3 Type	na
Dimensional Weight	0.15485611510791367 lb	Division	Tube Fittings Division
Connection Type	Tube to ISO 6149	Connection 4 Type	na
O-Ring Material	90 Durometer Nitrile	Connection 1 Tube Outside Diameter	1 inch
Connection 4 Tube Outside Diameter	na
