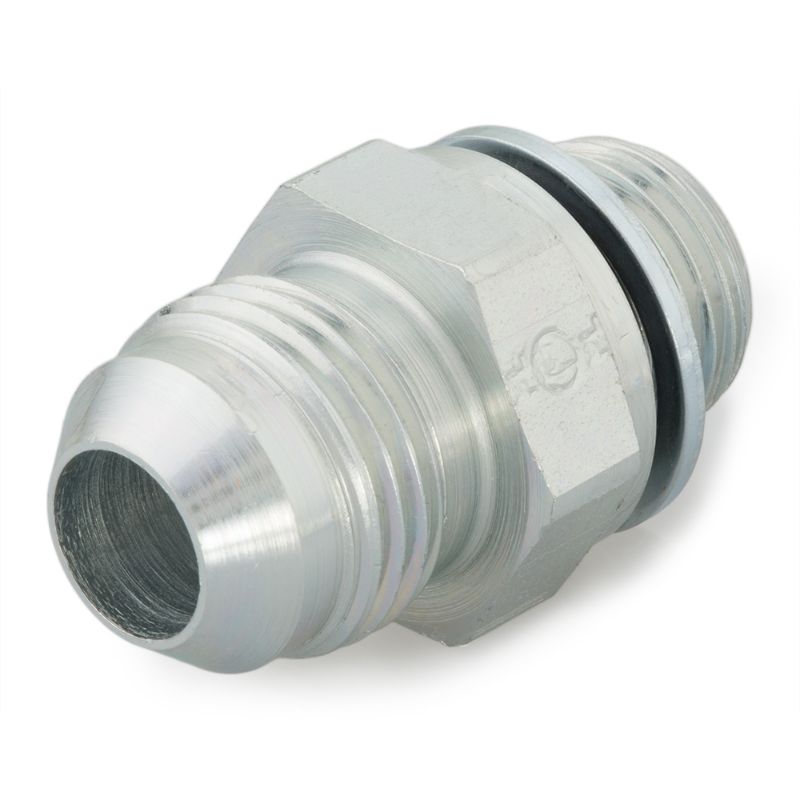

Parker 8M16F8OMXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 8M16F8OMXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 8M16F8OMXS
Price: 18.20 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:

27 In Stock

Sumter, SC	11
Richmond, VA	4 (Pickup only)
Johnson City, TN	4 (Pickup only)
Ashland, VA	2 (Pickup only)
Norfolk, VA	2
West Knoxville, TN	2
East Knoxville, TN	2

Partner Available:

258 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 8M16F8OMXS

$18.20/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	Male 37° Flare
Body Material	Steel	Connection 2 Thread Size	M16x1.5 mm
Shape	Straight	Division	Tube Fittings Division
O-Ring Material	90 Durometer Nitrile	Connection Type	37° Flare
Connection 1 Tube Outside Diameter	1/2 inch	Connection 4 Tube Outside Diameter	na
Connection 3 Thread Size	na	Connection 3 Tube Outside Diameter	na
Dimensional Weight	0.02697841726618705 lb	Connection 2 Size	Male Metric O-Ring Retaining Ring
Connection 3 Size	na	Specifications Met	SAE J514
Connection 2 Tube Outside Diameter	na	Connection 4 Size	na
Maximum Dynamic Pressure	5000 psi
