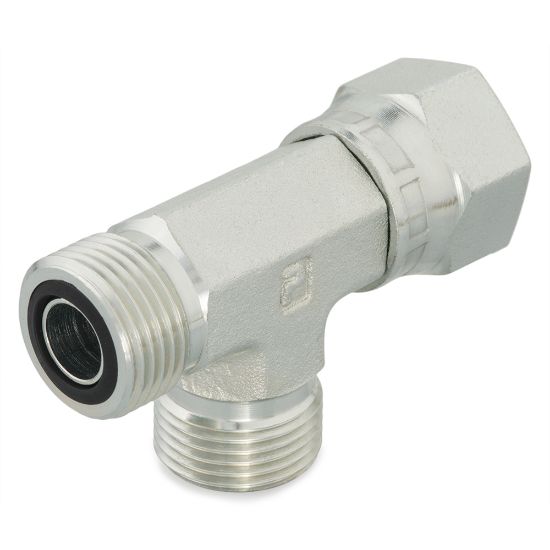

Parker 10 R6LO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: Parker 10 R6LO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 10 R6LO-S
Price: 43.82 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:

32 In Stock

Richmond, VA	6
Grovetown, GA	5
Sumter, SC	4
Summerville, SC	3
Ashland, VA	2 (Pickup only)
Norfolk, VA	2
Knoxville, TN	2
Johnson City, TN	2 (Pickup only)
Knoxville, TN	2
Mooresville, NC	2
Richmond, VA	1 (Pickup only)
Fayetteville, NC	1

Partner Available:

640 In Stock

Brand Parker

Part No. 10 R6LO-S

$43.82/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Maximum Dynamic Pressure	6000 psi	Shape	Tee
Body Material	Steel	Connection Type	Branch Tee
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	5/8 inch	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Connection 3 Tube Outside Diameter	5/8 inch	Connection 4 Tube Outside Diameter	na
O-Ring Material	90 Durometer Nitrile	Connection 1 Type	Male O-Ring Face Seal
Connection 2 Type	Female O-Ring Face Seal Swivel	Connection 3 Type	Male O-Ring Face Seal
Connection 4 Type	na	Dimensional Weight	0.1370728417266187 lb
Specifications Met	SAE J1453

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
