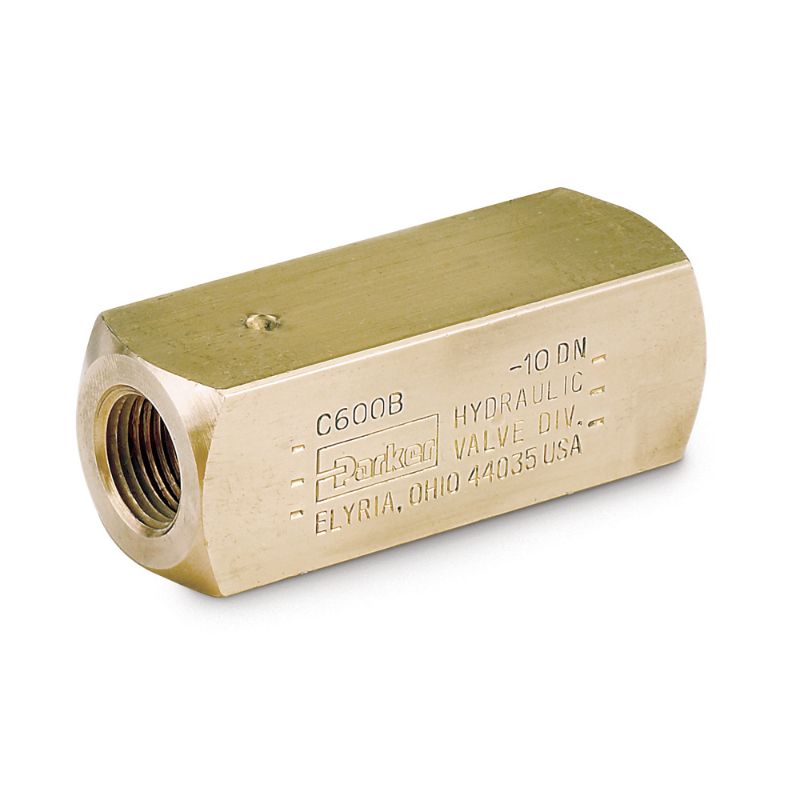

Parker 8C1600B - Colorflow Check Valve – C Series

Parkers Colorflow C series hydraulic check valves offer superior construction and versatility with a variety of materials, sizes and ports. These one-way check valves are used in hydraulic and pneumatic applications in the mobile & industrial markets.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8C1600B

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Configuration	Inline	Seal Material	Nitrile
Body Material	Brass	Cracking Pressure	5
Media	Hydraulic Fluids	Maximum Flow Rate	151
Mounting Type	Inline	Maximum Operating Pressure	500
Function	Mechanical	Maximum Operating Temperature	400
Brand	Colorflow	Actuation Type	Mechanical
Flow Rate	40	Division	Hydraulic Valve Systems Division
Connection Size	1	Minimum Operating Temperature	-40
Flow Direction	Free Flow in one direction shut-off in reverse	Connection Type	BSPT
Mounting Type	In-line	Function	Check
Maximum Operating Pressure	500	Seal Material	N/A
Body Material	BRASS	Connection Size	1"
Media	Hydraulic Oil	Maximum Flow Rate (gpm)	40
Minimum Operating Temperature	-40	Configuration	In-line
Flow Direction	Free Flow in one Direction	Actuation Type	Mechnical
Maximum Operating Temperature	250	Cracking Pressure (psi)	5
Connection Type	BSPT
