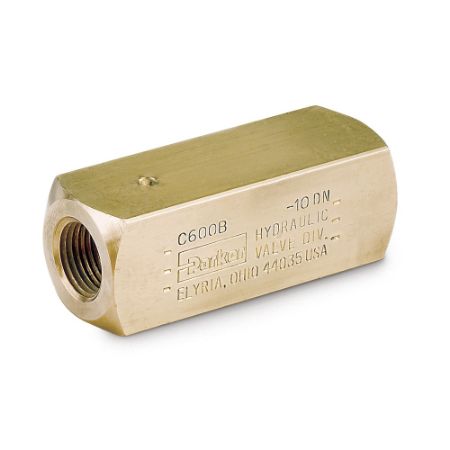

Colorflow Check Valve – C Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker’s C series hydraulic inline are one-way check valves that permit free flow in one direction, and dependable shut-off in the reverse direction.
The C Series Check Valve port options include ISO 6149, NPT, BSPP, BSPT and SAE. Parker offers superior brass, steel and stainless-steel check valves in a wide variety of sizes and ports. The steel C Series Check Valve comes standard with a black oxide finish.
Markets:
• Power Gen
• Machine Tools
• Factory automation
• Vehicle Assembly Facilities
• Molding
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Oil & Gas
• Machine tools
• Material Handling
• Mining
• Marine
Features/Benefits:
• Soft seat construction for low leakage
• Pressures up to 5,000 PSI
• Available in Brass, Steel and Stainless Steel
• Port sizes from 1/8 up to 2”
Applications:
• Accumulator circuits
• Tank line backpressure
• Power units
• Tank line backpressure
• High low pump circuits
| Action | Part No. | Availability | Partner Available | Price | UOM | Body Material | Minimum Operating Temperature | Maximum Flow Rate | Flow Rate | Seal Material | Actuation Type | Brand | Connection Size | Maximum Operating Pressure | Flow Direction | Cracking Pressure | Function | Configuration | Connection Type | Division | Maximum Operating Temperature | Media | Mounting Type | Body Material | Connection Size | Seal Material | Cracking Pressure (psi) | Maximum Operating Pressure | Connection Type | Media | Function | Configuration | Mounting Type | Actuation Type | Flow Direction | Maximum Flow Rate (gpm) | Maximum Operating Temperature | Minimum Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9C1600S | Quote Required | 14 In Stock | $243.00/each | EA | Steel | -40 °F | 151 L/min | 40 g/min | Nitrile | Mechanical | Colorflow | 1 inch | 3000 psi | Free Flow in one direction shut-off in reverse | 5 psi | Mechanical | Inline | BSPP | Hydraulic Valve Systems Division | 205 °C | Hydraulic | Inline | Steel | 1" | N/A | 5 | 5000 | BSPP | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 40 | 250 | -40 | |
| C1020S | 1 Limited Stock | 63 In Stock | $110.25/each | EA | Steel | -40 °F | 57 L/min | 15 g/min | Nitrile | Mechanical | Colorflow | 10.0 mm SAE | 5000 psi | Free Flow in one direction shut-off in reverse | 5 psi | Mechanical | Inline | SAE | Hydraulic Valve Systems Division | 121 °C | Hydraulic | Inline | Steel | #10 | Nitrile | 5 | 5000 | SAE | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 15 | 250 | -40 | |
| C1200B | 19 In Stock | 158 In Stock | $110.25/each | EA | Brass | -40 | 95 | 25 | Nitrile | Mechanical | Colorflow | 3/4 | 2000 | Free Flow in one direction shut-off in reverse | 5 | Mechanical | Inline | NPT | Hydraulic Valve Systems Division | 250 | Water | Inline | BRASS | 3/4" | Nitrile | 5 | 2000 | NPT | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 25 | 250 | -40 | |
| C1200B10 | Quote Required | $114.00/each | EA | n/a | Free Flow in one direction shut-off in reverse | Hydraulic Valve Systems Division | BRASS | 3/4" | Nitrile | 10 | 2000 | NPT | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 25 | 250 | -40 | |||||||||||||||||
| C1200S | 64 In Stock | 410 In Stock | $103.50/each | EA | Steel | -40 °F | 95 L/min | 25 g/min | Nitrile | Mechanical | Colorflow | 3/4 inch | 3000 psi | Free Flow in one direction shut-off in reverse | 5 psi | Mechanical | Inline | NPT | Hydraulic Valve Systems Division | 121 °C | Hydraulic | Inline | Steel | 3/4" | Nitrile | 5 | 5000 | NPT | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 25 | 250 | -40 | |
| C1200S10 | Quote Required | 18 In Stock | $103.50/each | EA | n/a | Free Flow in one direction shut-off in reverse | Hydraulic Valve Systems Division | Steel | 3/4" | Nitrile | 10 | 5000 | NPT | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 25 | 250 | -40 | ||||||||||||||||
| C1200S20 | Quote Required | 1 Limited Stock | $103.50/each | EA | Steel | -40 °F | 95 L/min | n/a | Nitrile | Mechanical | Colorflow | 3/4 inch | 3000 psi | Free Flow in one direction shut-off in reverse | 20 psi | Mechanical | Inline | NPT | Hydraulic Valve Systems Division | 250 °F | Hydraulic | Inline | Steel | 3/4" | N/A | 20 | 5000 | NPT | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 25 | 250 | -40 | |
| C1200S65 | Quote Required | 40 In Stock | $103.50/each | EA | Steel | -40 °C | 95 L/min | n/a | Nitrile | Mechanical | Colorflow | 3/4 inch | 3000 psi | Free Flow in one direction shut-off in reverse | 65 psi | Mechanical | Inline | NPT | Hydraulic Valve Systems Division | 121 °C | Hydraulic | Inline | Steel | 3/4" | N/A | 65 | 5000 | NPT | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 25 | 250 | -40 | |
| C1220S | 19 In Stock | 122 In Stock | $104.25/each | EA | Steel | -40 °C | 95 L/min | 25 g/min | Nitrile | Mechanical | Colorflow | 12.0 mm SAE | 3000 psi | Free Flow in one direction shut-off in reverse | 5 psi | Mechanical | Inline | SAE | Hydraulic Valve Systems Division | 121 °C | Hydraulic | Inline | Steel | #12 | Nitrile | 5 | 5000 | SAE | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 25 | 250 | -40 | |
| C1220S20 | Quote Required | $104.25/each | EA | Steel | -40 °C | 95 L/min | n/a | Nitrile | Mechanical | Colorflow | 12.0 mm SAE | 3000 psi | Free Flow in one direction shut-off in reverse | 20 psi | Mechanical | Inline | SAE | Hydraulic Valve Systems Division | 250 °F | Hydraulic | Inline | Steel | #12 | N/A | 20 | 5000 | SAE | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 25 | 250 | -40 | ||
| C1220S65 | Quote Required | 52 In Stock | $104.25/each | EA | Steel | -40 °C | 95 L/min | 25 g/min | Nitrile | Mechanical | Colorflow | 12.0 mm SAE | 3000 psi | Free Flow in one direction shut-off in reverse | 65 psi | Mechanical | Inline | SAE | Hydraulic Valve Systems Division | 250 °F | Hydraulic | Inline | Steel | #12 | N/A | 65 | 5000 | SAE | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 25 | 250 | -40 | |
| C1600B | Quote Required | 13 In Stock | $407.25/each | EA | Brass | -40 °C | 151 L/min | 40 g/min | Nitrile | Mechanical | Colorflow | 1 inch | 500 psi | Free Flow in one direction shut-off in reverse | 5 psi | Mechanical | Inline | NPT | Hydraulic Valve Systems Division | 400 °F | Hydraulic Fluids | Inline | BRASS | 1" | N/A | 5 | 500 | NPT | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 40 | 250 | -40 | |
| C1600B65 | Quote Required | $417.75/each | EA | Brass | -40 °C | 151 L/min | n/a | Nitrile | Mechanical | Colorflow | 1 inch | 500 psi | Free Flow in one direction shut-off in reverse | 65 psi | Mechanical | Inline | NPT | Hydraulic Valve Systems Division | 205 °C | Water | Inline | BRASS | 1" | N/A | 65 | 500 | NPT | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 40 | 250 | -40 | ||
| C1600S | 17 In Stock | 126 In Stock | $186.00/each | EA | Steel | -40 °C | 151 L/min | 40 g/min | Nitrile | Mechanical | Colorflow | 1 inch | 3000 psi | Free Flow in one direction shut-off in reverse | 5 psi | Mechanical | Inline | NPT | Hydraulic Valve Systems Division | 400 °F | Hydraulic | Inline | Steel | 1" | N/A | 5 | 5000 | NPT | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 40 | 250 | -40 | |
| C1600S20 | Quote Required | 9 In Stock | $186.00/each | EA | Steel | -40 °C | 151 L/min | 40 g/min | Nitrile | Mechanical | Colorflow | 1 inch | 3000 psi | Free Flow in one direction shut-off in reverse | 20 psi | Mechanical | Inline | NPT | Hydraulic Valve Systems Division | 205 °C | Hydraulic | Inline | Steel | 1" | N/A | 20 | 5000 | NPT | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 40 | 250 | -40 | |
| C1600S65 | 6 In Stock | 7 In Stock | $186.00/each | EA | Steel | -40 °C | 151 L/min | n/a | Nitrile | Mechanical | Colorflow | 1 inch | 3000 psi | Free Flow in one direction shut-off in reverse | 65 psi | Mechanical | Inline | NPT | Hydraulic Valve Systems Division | 400 °F | Hydraulic | Inline | Steel | 1" | N/A | 65 | 5000 | NPT | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 40 | 250 | -40 | |
| C1620S | 23 In Stock | 44 In Stock | $300.75/each | EA | Steel | -40 °C | 151 L/min | n/a | Nitrile | Mechanical | Colorflow | 16.0 mm SAE | 3000 psi | Free Flow in one direction shut-off in reverse | 5 psi | Mechanical | Inline | SAE | Hydraulic Valve Systems Division | 400 °F | Hydraulic | Inline | Steel | 1" | N/A | 5 | 5000 | SAE | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 40 | 250 | -40 | |
| C1620S20 | Quote Required | 2 Limited Stock | $300.75/each | EA | Steel | -40 °C | 151 L/min | 40 g/min | Nitrile | Mechanical | Colorflow | 16.0 mm SAE | 3000 psi | Free Flow in one direction shut-off in reverse | 20 psi | Mechanical | Inline | SAE | Hydraulic Valve Systems Division | 400 °F | Hydraulic | Inline | Steel | 1" | N/A | 20 | 5000 | SAE | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 40 | 250 | -40 | |
| C1620S65 | 2 Limited Stock | 3 In Stock | $300.75/each | EA | Steel | -40 °C | 151 L/min | n/a | Nitrile | Mechanical | Colorflow | 16.0 mm SAE | 3000 psi | Free Flow in one direction shut-off in reverse | 65 psi | Mechanical | Inline | SAE | Hydraulic Valve Systems Division | 205 °C | Hydraulic | Inline | Steel | 1" | N/A | 65 | 5000 | SAE | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 40 | 250 | -40 | |
| C2000B | Quote Required | $687.00/each | EA | Brass | -40 °C | 265 L/min | 70 g/min | Nitrile | Mechanical | Colorflow | 1-1/4 inch | 2000 psi | Free Flow in one direction shut-off in reverse | 5 psi | Mechanical | Inline | NPT | Hydraulic Valve Systems Division | 205 °C | Water | Inline | BRASS | 1 1/4" | N/A | 5 | 2000 | NPT | Hydraulic Oil | Check | In-line | In-line | Mechnical | Free Flow in one Direction | 70 | 250 | -40 |
