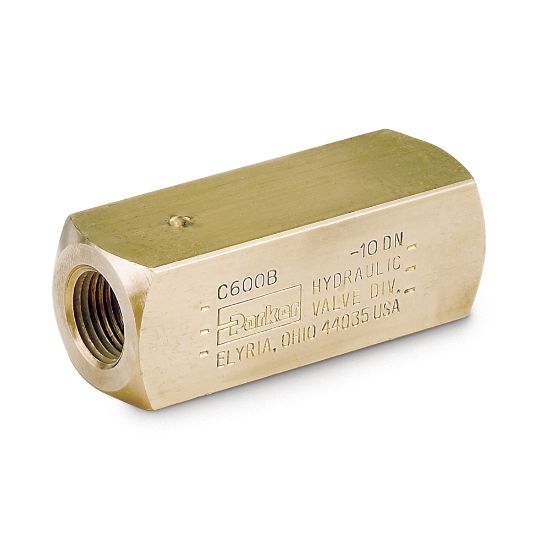

Parker 8C1200S - Colorflow Check Valve – C Series

Parkers Colorflow C series hydraulic check valves offer superior construction and versatility with a variety of materials, sizes and ports. These one-way check valves are used in hydraulic and pneumatic applications in the mobile & industrial markets.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8C1200S

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Steel	Function	Mechanical
Seal Material	Nitrile	Configuration	Inline
Actuation Type	Mechanical	Connection Size	3/4 inch
Media	Hydraulic	Cracking Pressure	5 psi
Mounting Type	Inline	Minimum Operating Temperature	-40 °F
Flow Direction	Free Flow in one direction shut-off in reverse	Connection Type	BSPT
Maximum Operating Temperature	121 °C	Maximum Operating Pressure	3000 psi
Maximum Flow Rate	95 L/min	Flow Rate	n/a
Brand	Colorflow	Division	Hydraulic Valve Systems Division
Mounting Type	In-line	Configuration	In-line
Minimum Operating Temperature	-40	Flow Direction	Free Flow in one Direction
Media	Hydraulic Oil	Connection Type	BSPT
Cracking Pressure (psi)	5	Seal Material	Nitrile
Flow Rate	25	Connection Size	3/4"
Function	Check	Maximum Flow Rate (gpm)	25
Maximum Operating Pressure	5000	Body Material	Steel
Maximum Operating Temperature	250	Actuation Type	Mechnical
