*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

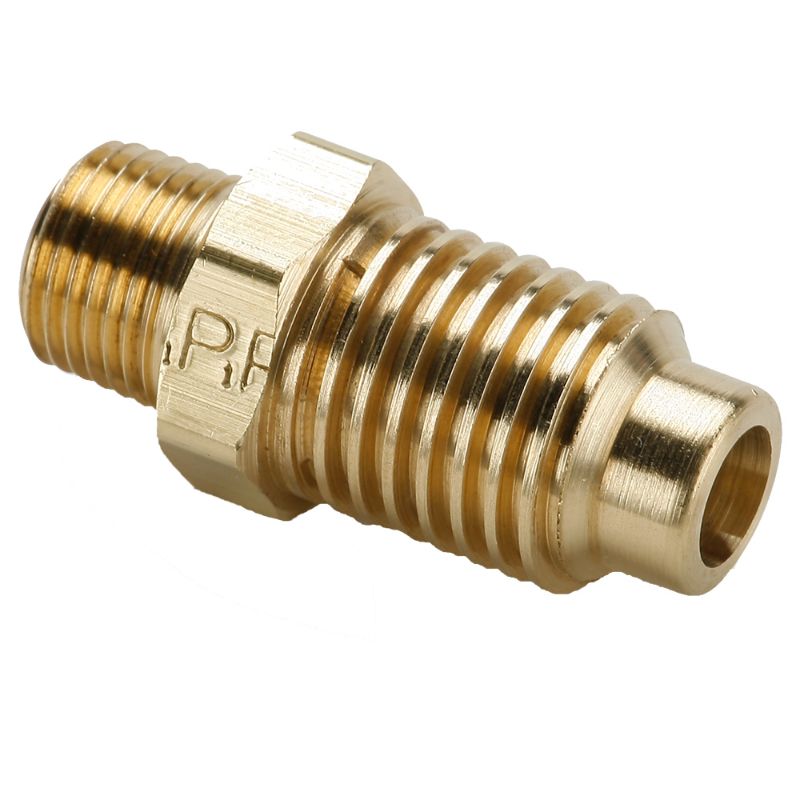

Parker 88AC-8-2 - Refrigeration Access Valves

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 88AC-8-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Nut Material	Brass	Body Material	Brass
Minimum Operating Temperature	-28 °C	Maximum Operating Temperature	104 °C
Maximum Operating Pressure	500 psi	Media	Fluorocarbon Refrigerants
Division	Fluid System Connectors Division	Specifications Met	Valve Core Meets ARI Standard 720
Connection 1 Style	Male ACME	Connection 2 Solder O.D. (inch)	na
Connection 2 Tube O.D. (inch)	na	Connection 2 Style	Male Pipe
Connection 1 Tube O.D. (inch)	1/2-16	Style	Pipe to ACME Threaded Male
Connection 2 Thread Size (inch)	1/8	Shape	Refrigerant Adapter
