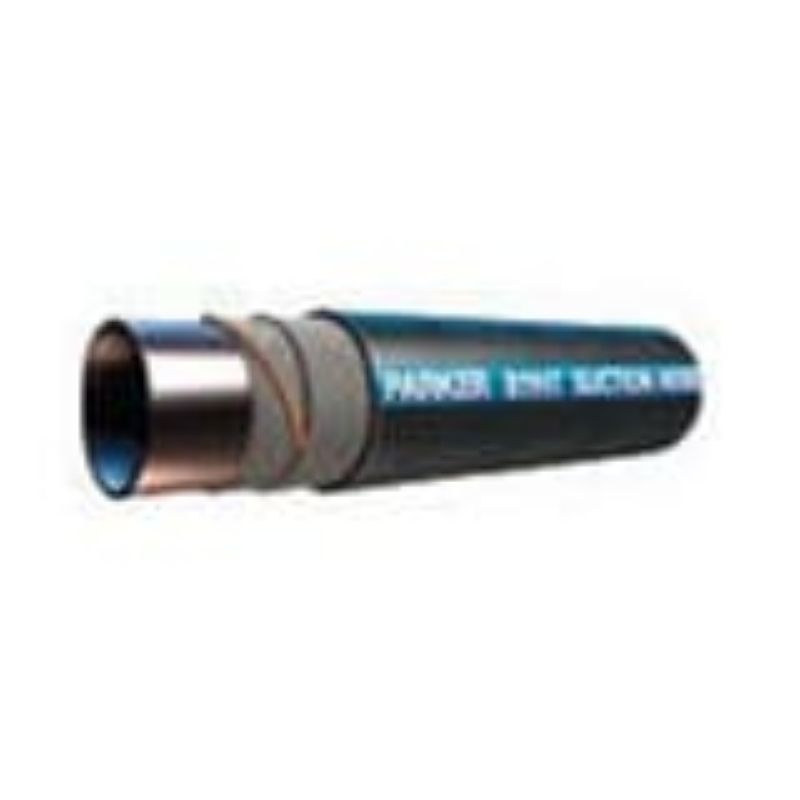

Parker 811HT-16 - High Temperature Suction and Return Line Hose 62-300 PSI – 811HT Hose

Parker’s 811HT hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

AFP Availability:	Quote Required
Partner Available:	5199 In Stock

Brand Parker

Part No. 811HT-16

$21.31/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Reinforcement Material	Multiple Layers of Spiral Fiber with Wire Helix
Minimum Bend Radius	3 inch	Specifications Met	SAE J1942
Weight	0.65 lb/ft	Maximum Operating Pressure	1.7 MPa
Design Factor	4:1	Application	Lubricating Oils
Minimum Operating Temperature	-46 °C	Cover Material	Synthetic Rubber
Nominal Hose Inside Diameter	25 mm	Division	Hose Products Division
Maximum Operating Temperature	257 °F	Hose Cover Type	Standard Cover
Compatible Fitting	81 Series	Hose Inner Tube Material	Synthetic Rubber
Media	Petroleum Hydraulic Fluids	Inside Diameter	1 inch
Outside Diameter	38 mm	Vacuum Pressure Rating	95 kPa
Hose I.D. (size)	-16

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
