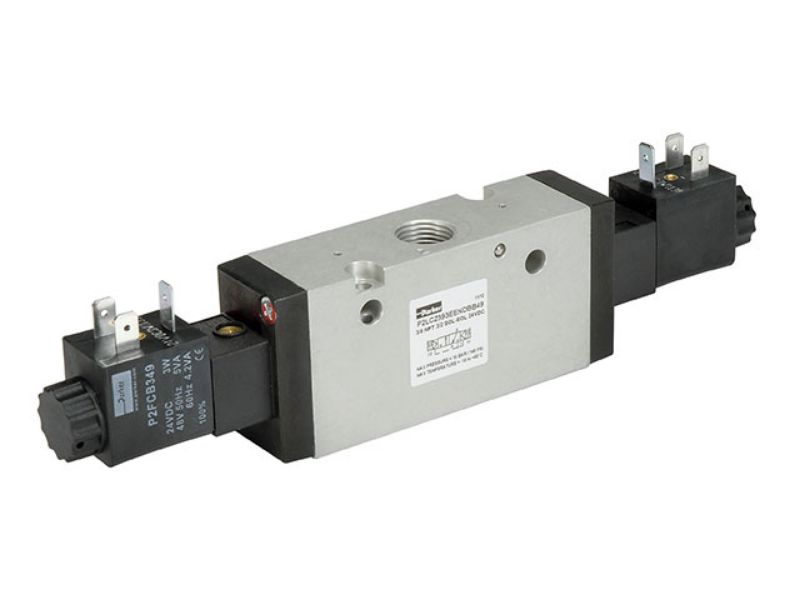

Parker P2LCZ393EENDBB49 - Viking Lite Series Double Solenoid 3-way 2-position Valve

Double Solenoid, 3-way, 2-position

Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. P2LCZ393EENDBB49

$116.12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Solenoid Voltage	24VDC	Override Type	Non-locking
Pkg Qty	1	Pilot Supply	Internal
CV Factor	2.5	Port	3/8 NPT
Operator Type Detail	Double	Pilot Supply	Internal
CV Factor	2.5	Valve Passages	3-way
Valve Positions	2-position	Parker Division	Pneumatic
Trade Name	Viking Lite	Pneumatic Valve Type	Inline Valve
Port Inch/BSP	NPT	Operator Type	Solenoid
Supply Pressure Range	22 to 145 PSIG (1.5 to 10 bar)	Operator Type Detail	Double
Solenoid Connection	22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)	Parker Group	Automation
Series	Viking Lite	Operating Temperature	14°F to 122°F (-10°C to 50°C)
Solenoid Voltage	24VDC	Port	3/8 NPT
Override Type	Non-locking
