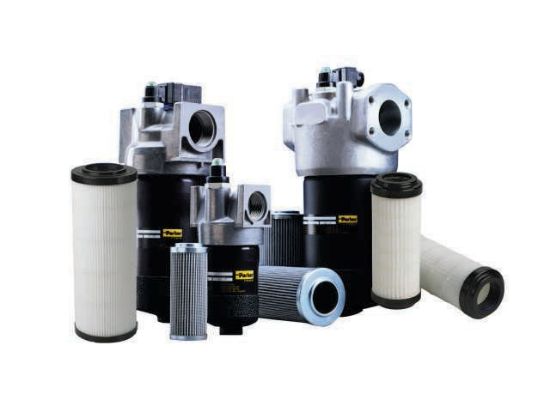

Parker 80CN102QEBE2GN244 - 80CN Series Medium Pressure Filter

80CN Series Hydraulic and Lube Oil Medium Pressure Filter

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 80CN102QEBE2GN244

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Options	SAE-4 drain port on bowl	UOM	EA
Replacement Element	936713Q	Indicator Type	Electrical/Visual (DIN-43650 Connection)
Nominal Filter Rating	2 micron	Element Length	Single
Max Pressure - Non-Fatigue MAOP	1000 psi (69 bar)	Port	1 1/2 NPT
Bypass	25 PSI (1.7 bar)	Seals	Nitrile
Operating Temperature	-40F to 225F (-40C to 107C)	Max Pressure - Fatigue MAOP	800 psi (55.2 bar)
Nominal Flow Rating	45 GPM (171 LPM)	Pkg Qty	1
Seals	Nitrile	Port	1 1/2 NPT
Bypass	25 PSI (1.7 bar)	Filter Media Code	02QE
Nominal Filter Micron Rating	2 micron	Nominal Flow Rating	45 GPM (171 LPM)
Filter Type	Medium Pressure Filter	Filter Media Type	Ecoglass III
Series	80CN	Parker Division	Hydraulic Filter
Parker Group	Filtration	Indicator Type	Electrical/Visual (DIN-43650 Connection)
Operating Temperature	-40F to 225F (-40C to 107C)	Port Type	NPT
Max Pressure - Fatigue MAOP	800 PSI (55.2 bar)	Max Pressure - Non-Fatigue MAOP	1000 PSI (69 bar)
Options	SAE-4 drain port on bowl	Element Length	Single

Product resources

CN Series (PDF)
