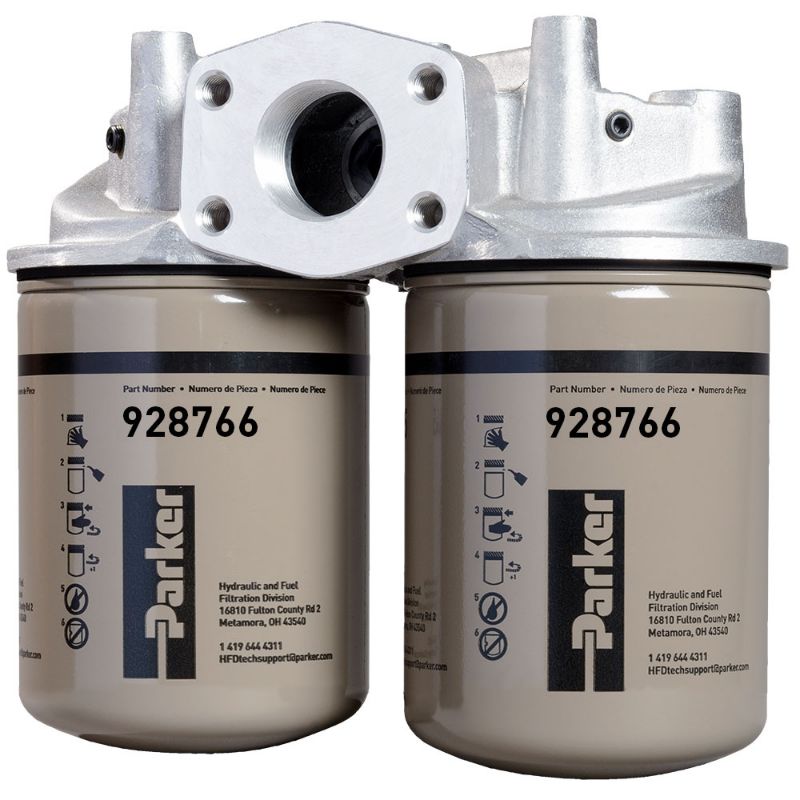

Parker 80AT110BBPGY32H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 80AT110BBPGY32H

$311.55/each

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element Type	10 micron microglass
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.	Pressure Rating	150
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Indicator Pressure Setting	20
Maximum Operating Temperature	107	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Weight	5.13	Flow Rate	72
Housing Material	Low Carbon Steel	Bypass Valve Pressure Rating	25 psid
Compatible Element	928766	Port Type	2" SAE Code 61 Flange / 1-1/2" NPT ports
Seal Material	Nitrile	Mounting Type	Inline
Indicator Type	Sold separately	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Port Connection Type	2" SAE Code 61 Flange / 1-1/2" NPT ports	Indicator Type	Sold separately
Seal Material	Nitrile	Filter Element	10 micron microglass
Bypass Valve (psi)	25 psid bypass	Flow Rate (gpm)	72
