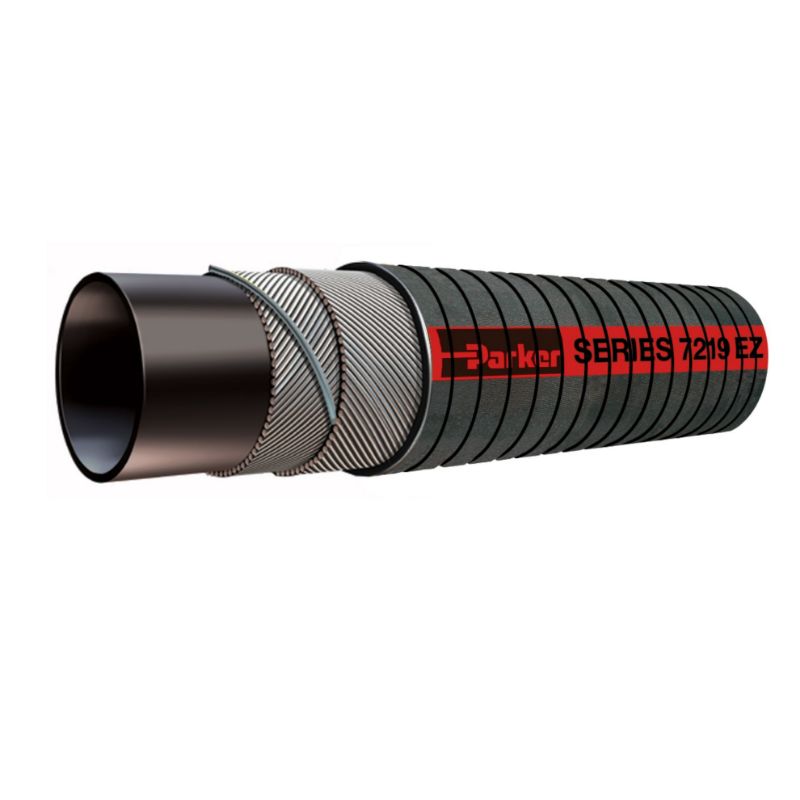

Parker 7219-0625025 - E-Z Form MP Oil Resistant Flexible Suction Hose, Multipurpose, Series 7219

Name: Parker 7219-0625025 - E-Z Form MP Oil Resistant Flexible Suction Hose, Multipurpose, Series 7219
SKU: 7219-0625025
Price: 17.96 USD
Availability: InStock

E-Z Form MP Greek Corrugated Multipurpose Oil Resistant Suction Hose is an extremely flexible hose designed for refined fuels and oil transfer in applications to 250°F and 75 psi, Series 7219

AFP Availability:

60 In Stock

Richmond, VA	23 (Pickup only)
North Chesterfield, VA	19
Sumter, SC	18

Partner Available:

85 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 7219-0625025

$17.96/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Cover Color	Black	Vacuum Pressure Rating	737 mm-Hg
Inside Diameter	15.9 mm	Outside Diameter	1.1 inch
Compatible Fitting	HY	Hose Inner Tube Material	Black
Media	Water	Maximum Operating Temperature	121 °C
Application	Engine	Minimum Operating Temperature	-34 °C
Cover Material	Chloroprene Rubber (CR)	Design Factor	4:1
Weight	0.37 lb/ft	Maximum Operating Pressure	0.5 MPa
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Minimum Bend Radius	32.7 mm
Specifications Met	n/a	Hose I.D. (inch)	5/8
Standard Package Quantity	25 ft
