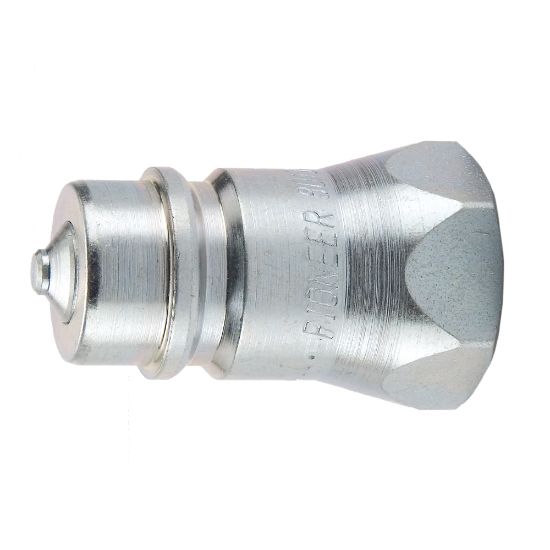

Parker 8010-4P - Pioneer, Agriculture Universal Male Tip, ISO 5675 - 8010 Series

Name: Parker 8010-4P - Pioneer, Agriculture Universal Male Tip, ISO 5675 - 8010 Series
SKU: 8010-4P
Price: 16.70 USD
Availability: InStock

Pioneer 8010 Nipples are the standard male tip of the agricultural industry, developed and proven in over 65 years of farm service.

AFP Availability:

32 In Stock

North Chesterfield, VA	23
Ashland, VA	6 (Pickup only)
Johnson City, TN	3 (Pickup only)

Partner Available:

1726 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 8010-4P

$16.70/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Thread Size	Female	Minimum Operating Temperature	-40 °F
Dimensional Weight	0.03998800959232614 lb	Division	Quick Coupling Division
Media	Hydraulic	Maximum Operating Temperature	250 °F
Coupling Half	Nipple	Maximum Operating Pressure	3000 psi
Plating Type	Zinc with Clear Trivalent Chromate	Application	Hydraulics
Flow Rate	12 Gal/min	Specifications Met	ISO 5675
Seal Material	Nitrile	Body Size	1/2 inch
Connection Type	NPTF	Port Connection (inch)	1/2 - 14
Valve Style	Poppet

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
