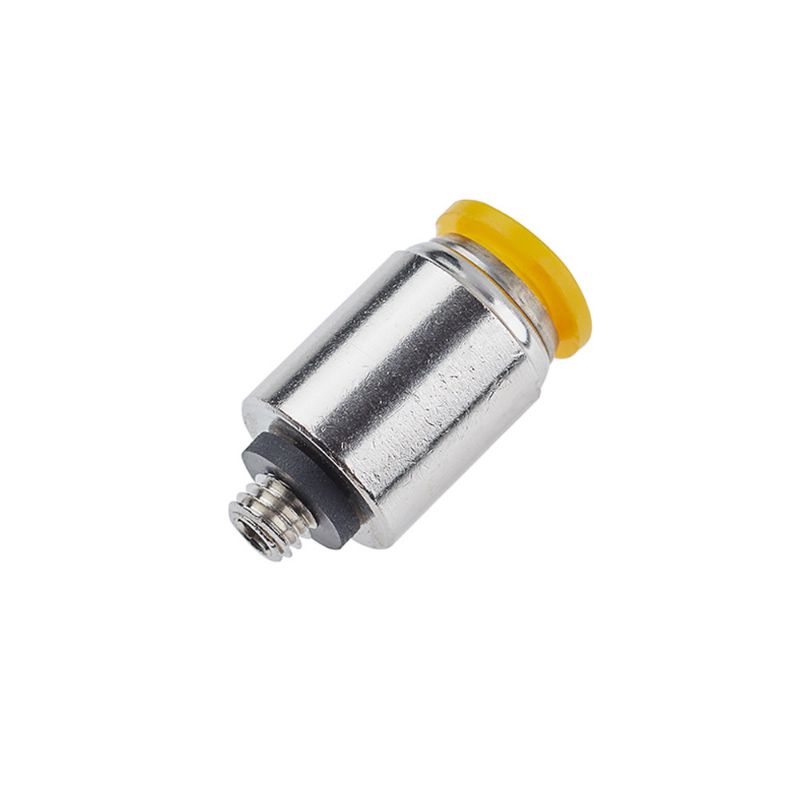

Parker 68PLPR-4M-M5 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 68PLPR-4M-M5

$7.17/each

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Vacuum
Minimum Operating Temperature	-17.7 °C	Division	Fluid System Connectors Division
Body Material	Brass, Nickel-plated	Gripping Ring Material	Stainless Steel
Maximum Operating Pressure	20.6 bar	Industry	Material Handling
Brand	Parker	Seal Material	Nitrile
Tube Material	Polypropylene	Specifications Met	UL 94 V-0
For Fluid Type	Oil	Division	Fluid System Connectors Division
Materials of Construction	PVDF (Button)	Vacuum Pressure Rating	28 Inch-Hg
Region of Origin	United States	Hex Size	2.43 inch
Maximum Operating Temperature	200 °F	Technology	Pneumatics
Connection 1 Size	4 mm	Connection 1 Type	Push-to-Connect
Configuration	Tube to Pipe	Connection 2 Type	Male Metric, M5
Connection 2 Size	M5x0.8	Product Style	Round Body Connector
