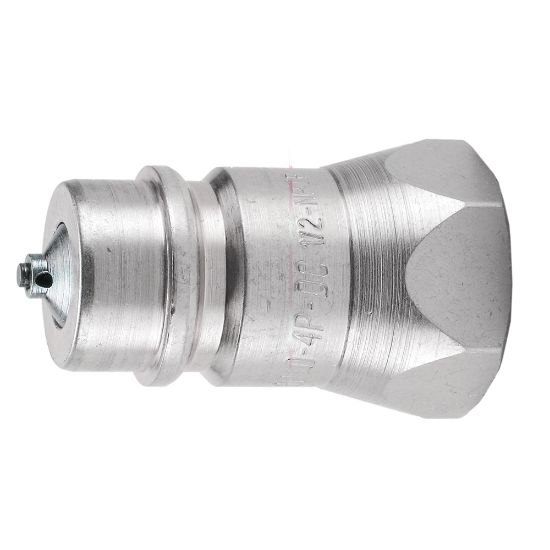

Parker 8010-4P-DC - Pioneer, Agriculture Universal Male Tip, ISO 5675 - 8010 Series

Pioneer 8010 Nipples are the standard male tip of the agricultural industry, developed and proven in over 65 years of farm service.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8010-4P-DC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	ISO 5675	Application	Hydraulics
Maximum Operating Temperature	250 °F	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate	Dimensional Weight	0.03998800959232614 lb
Coupling Half	Nipple	Thread Size	Female
Seal Material	Nitrile	Media	Hydraulic
Division	Quick Coupling Division	Body Size	1/2 inch
Minimum Operating Temperature	-40 °F	Maximum Operating Pressure	3000 psi
Flow Rate	12 Gal/min	Port Connection (inch)	1/2 - 14
Valve Style	Connect under pressure poppet	Connection Type	NPTF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
