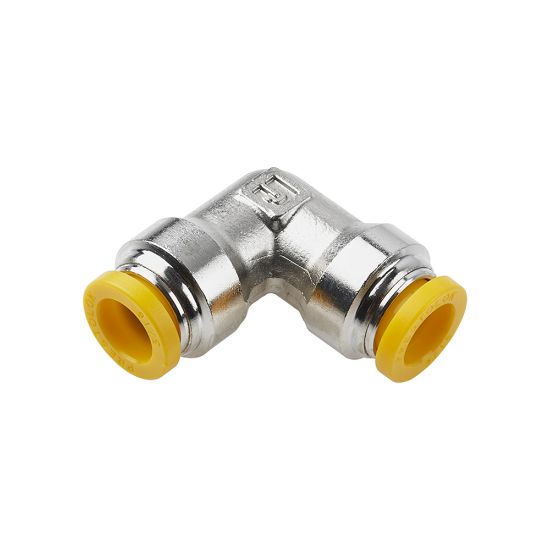

Parker 165PLP-4M - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 165PLP-4M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division	Seal Material	Nitrile
Vacuum Pressure Rating	28 Inch-Hg	Hex Size	n/a
Application	Inert Gases	Technology	Pneumatics
For Fluid Type	Air	Specifications Met	UL 94 V-0
Industry	Semiconductor	Materials of Construction	PVDF (Button)
Body Material	Brass, Nickel-plated	Maximum Operating Pressure	20.6 bar
Region of Origin	United States	Gripping Ring Material	Stainless Steel
Maximum Operating Temperature	93.3 °C	Minimum Operating Temperature	-17.7 °C
Tube Material	Rigid Nylon	Shape	Elbow 90°
Connection 1 Size	4 mm	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Connection 2 Size	4 mm
Connection 2 Type	Push-to-Connect
